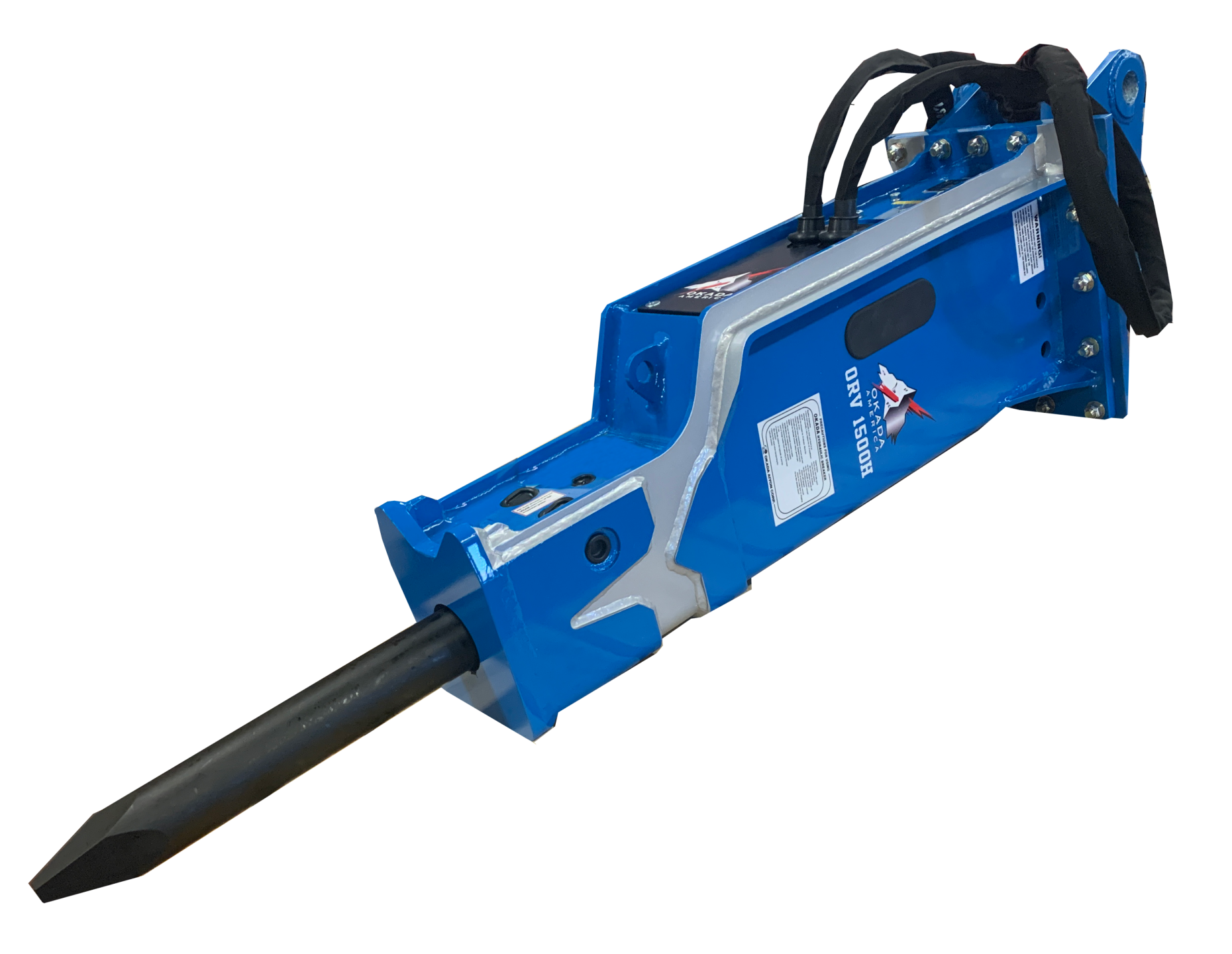

ORV1500H

SMALL CLASS ORV HYRRAULIC BREAKER

ORV Series hydraulic breakers are the result of decades of field experience and Okada’s long-standing record of leadership in the industry. Thirteen models of ORV hydraulic breakers provide a broad range  of solutions for your skid steer loaders, compact excavators, tractor loader backhoes and excavator

DOWNLOAD BROCHUREDealer Logincontact sales
IMPACT ENERGY CLASSFT-LB
JOULES
OPERATING WEIGHTLBS
KG
OIL FLOWGPM
LPM
FREQUENCYBPM L-Mode
BPM S-Mode
OPERATING PRESSUREPSI
BAR
MECHANICAL ENERGYHP
KW
MECHANICAL ENERGY AVG.HP
KW
UNIT WORKING LENGTHINCHES
CM
TOOL DIAMETERINCHES
MM
TOOL WORKING LENGTHINCHES
MM
85DB(A) LEVEL DISTANCEFEET
M
CARRIER WEIGHT RANGE1000 LBS.
M TON
ORV1500H
IMPACT ENERGY CLASSFT-LB1500
JOULES2034
OPERATING WEIGHTLBS1667
KG756
OIL FLOWGPM16-26
LPM60-98
FREQUENCYBPM L-Mode350-700
BPM S-Mode490-1000
OPERATING PRESSUREPSI1990-2418
BAR137-167
MECHANICAL ENERGYHP15-38
KW11-28
MECHANICAL ENERGY AVG.HP26.5
KW20
UNIT WORKING LENGTHINCHES83
CM212
TOOL DIAMETERINCHES3.54
MM90
TOOL WORKING LENGTHINCHES22.6
MM575
85DB(A) LEVEL DISTANCEFEET65-91
M20-28
CARRIER WEIGHT RANGE1000 LBS.13-22
M TON6-10
ORV550H
IMPACT ENERGY CLASSFT-LB550
JOULES746
OPERATING WEIGHTLBS575
KG261
OIL FLOWGPM11-18
LPM42-68
FREQUENCYBPM L-Mode380-1000
BPM S-ModeN/A
OPERATING PRESSUREPSI1564-2347
BAR108-162
MECHANICAL ENERGYHP12-30
KW9-22
MECHANICAL ENERGY AVG.HP21
KW16
UNIT WORKING LENGTHINCHES62
CM157
TOOL DIAMETERINCHES2.75
MM70
TOOL WORKING LENGTHINCHES15.9
MM404
85DB(A) LEVEL DISTANCEFEET30-50
M9.1-15.2
CARRIER WEIGHT RANGE1000 LBS.6.6-14.2
M TON3.0-6.4
ORV800SH
IMPACT ENERGY CLASSFT-LB850
JOULES1153
OPERATING WEIGHTLBS730
KG331
OIL FLOWGPM14-20
LPM53-76
FREQUENCYBPM L-Mode380-900
BPM S-ModeN/A
OPERATING PRESSUREPSI1706-2347
BAR118-162
MECHANICAL ENERGYHP17-33
KW13-25
MECHANICAL ENERGY AVG.HP25
KW19
UNIT WORKING LENGTHINCHES63
CM160
TOOL DIAMETERINCHES2.95
MM75
TOOL WORKING LENGTHINCHES16.2
MM411
85DB(A) LEVEL DISTANCEFEET35-58
M11-18
CARRIER WEIGHT RANGE1000 LBS.10-18
M TON4.5-8
ORV1100H
IMPACT ENERGY CLASSFT-LB1100
JOULES1492
OPERATING WEIGHTLBS1118
KG507
OIL FLOWGPM15-23
LPM56-87
FREQUENCYBPM L-Mode400-800
BPM S-Mode600-1100
OPERATING PRESSUREPSI1990-2418
BAR137-167
MECHANICAL ENERGYHP14-37
KW10-28
MECHANICAL ENERGY AVG.HP25.5
KW19
UNIT WORKING LENGTHINCHES75
CM190
TOOL DIAMETERINCHES3.15
MM80
TOOL WORKING LENGTHINCHES19.5
MM496
85DB(A) LEVEL DISTANCEFEET57-95
M17.-29
CARRIER WEIGHT RANGE1000 LBS.10-18
M TON4.5-8
ORV2500H
IMPACT ENERGY CLASSFT-LB2500
JOULES3390
OPERATING WEIGHTLBS1990
KG902
OIL FLOWGPM25-35
LPM94-132
FREQUENCYBPM L-Mode350-550
BPM S-Mode600-900
OPERATING PRESSUREPSI1190-2700
BAR137-186
MECHANICAL ENERGYHP35-65
KW26-48
MECHANICAL ENERGY AVG.HP50
KW37
UNIT WORKING LENGTHINCHES89
CM226
TOOL DIAMETERINCHES4.1
MM104
TOOL WORKING LENGTHINCHES23.4
MM594
85DB(A) LEVEL DISTANCEFEET75-105
M23-32
CARRIER WEIGHT RANGE1000 LBS.22-34
M TON10-15
ORV3000H
IMPACT ENERGY CLASSFT-LB3000
JOULES4068
OPERATING WEIGHTLBS2550
KG1156
OIL FLOWGPM32-42
LPM121-159
FREQUENCYBPM L-Mode320-550
BPM S-Mode400-700
OPERATING PRESSUREPSI1990-2700
BAR137-186
MECHANICAL ENERGYHP45-78
KW33-58
MECHANICAL ENERGY AVG.HP61.5
KW46
UNIT WORKING LENGTHINCHES81
CM206
TOOL DIAMETERINCHES4.5
MM114
TOOL WORKING LENGTHINCHES24
MM610
85DB(A) LEVEL DISTANCEFEET78-109
M24-33
CARRIER WEIGHT RANGE1000 LBS.28-40
M TON13-18
ORV4000H
IMPACT ENERGY CLASSFT-LB4000
JOULES5424
OPERATING WEIGHTLBS3646
KG1654
OIL FLOWGPM40-53
LPM151-200
FREQUENCYBPM L-Mode320-480
BPM S-Mode400-600
OPERATING PRESSUREPSI2275-2700
BAR157-186
MECHANICAL ENERGYHP62-98
KW47-73
MECHANICAL ENERGY AVG.HP80
KW60
UNIT WORKING LENGTHINCHES111
CM282
TOOL DIAMETERINCHES5.31
MM135
TOOL WORKING LENGTHINCHES28.9
MM734
85DB(A) LEVEL DISTANCEFEET83-116
M25-35
CARRIER WEIGHT RANGE1000 LBS.38-54
M TON17-25

For use with Skid Steer Loaders, Mini & Small Excavators and Tractor Loader Backhoes.

Auto-Lube

A central grease port with internal grease passage readily adapts the hammer to most auto lube systems.

Main Valve

The internal control valve system equates to faster speeds and higher impact energy while still allowing the breaker to operate at cooler temperatures.

Accumulator

The large capacity accumulator reduces shock load in the system.

Stroke Adjuster

Variable speed control in the breaker maximizes productivity.

Original Holding System

The powercell is securely held inside the bracket with the head damper, reducing recoil.

Larger N2 Gas Chamber

Ensures high impact power.

Long Stroke Piston

Increases impact power, and reduces vibration and recoil.

Dual Chisel Retaining Pin

Extends Service Life.

Durable breaker Bracket

Includes a heavy duty bottom plate that protects the powercell and reduces noise and vibration.
