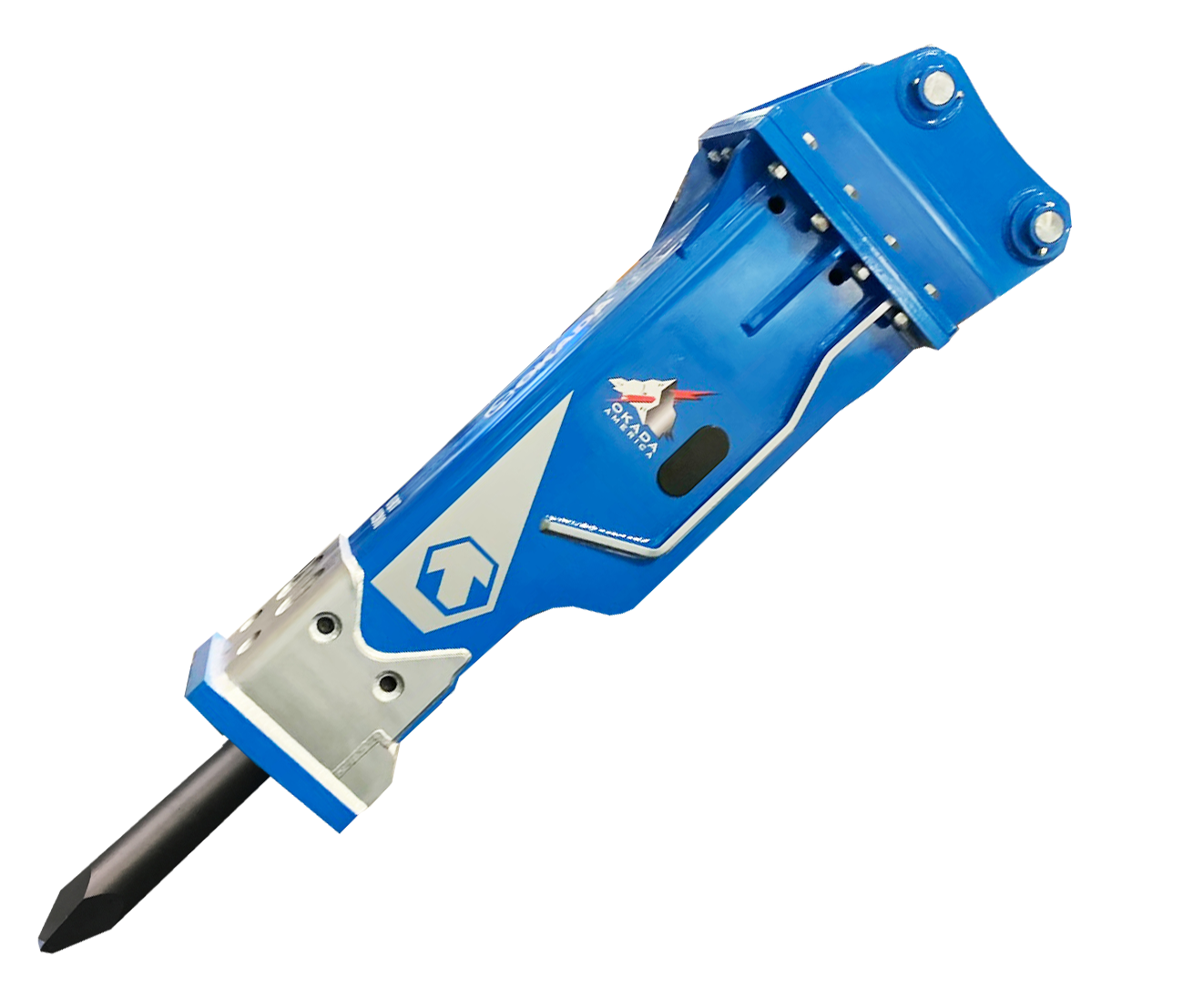

ORV12000

LARGE CLASS ORV HYRRAULIC BREAKER

DOWNLOAD BROCHUREDealer Logincontact sales
IMPACT ENERGY CLASSFT-LB
JOULES
OPERATING WEIGHTLBS
KG
OIL FLOWGPM
LPM
FREQUENCYBPM L-Mode
BPM S-Mode
OPERATING PRESSUREPSI
BAR
MECHANICAL ENERGYHP
KW
MECHANICAL ENERGY AVG.HP
KW
UNIT WORKING LENGTHINCHES
CM
TOOL DIAMETERINCHES
MM
TOOL WORKING LENGTHINCHES
MM
85DB(A) LEVEL DISTANCEFEET
M
CARRIER WEIGHT RANGE1000 LBS.
TON
ORV12000
IMPACT ENERGY CLASSFT-LB12500
JOULES16950
OPERATING WEIGHTLBS9921
KG4499
OIL FLOWGPM69-95
LPM261-359
FREQUENCYBPM L-Mode270-380
BPM S-Mode380-530
OPERATING PRESSUREPSI2130-2600
BAR147-180
MECHANICAL ENERGYHP101-176
KW75-131
MECHANICAL ENERGY AVG.HP138.5
KW103
UNIT WORKING LENGTHINCHES142
CM361
TOOL DIAMETERINCHES7.1
MM180
TOOL WORKING LENGTHINCHES32
MM813
85DB(A) LEVEL DISTANCEFEET131-177
M40-54
CARRIER WEIGHT RANGE1000 LBS.99-176
TON45-80
ORV4000
IMPACT ENERGY CLASSFT-LB4000
JOULES5424
OPERATING WEIGHTLBS3500
KG1587
OIL FLOWGPM32-42
LPM121-159
FREQUENCYBPM L-Mode320-480
BPM S-Mode400-600
OPERATING PRESSUREPSI2275-2600
BAR157-180
MECHANICAL ENERGYHP62-98
KW47-73
MECHANICAL ENERGY AVG.HP80
KW60
UNIT WORKING LENGTHINCHES103
CM262
TOOL DIAMETERINCHES5.3
MM135
TOOL WORKING LENGTHINCHES28.9
MM734
85DB(A) LEVEL DISTANCEFEET83-116
M25-35
CARRIER WEIGHT RANGE1000 LBS.38-54
TON17-25
ORV5000
IMPACT ENERGY CLASSFT-LB5000
JOULES6780
OPERATING WEIGHTLBS4400
KG1995
OIL FLOWGPM47-63
LPM178-238
FREQUENCYBPM L-Mode270-400
BPM S-Mode330-500
OPERATING PRESSUREPSI2320-2600
BAR157-180
MECHANICAL ENERGYHP73-117
KW55-87
MECHANICAL ENERGY AVG.HP95
KW71
UNIT WORKING LENGTHINCHES114
CM290
TOOL DIAMETERINCHES5.7
MM145
TOOL WORKING LENGTHINCHES28.2
MM716
85DB(A) LEVEL DISTANCEFEET98-137
M30-42
CARRIER WEIGHT RANGE1000 LBS.44-66
TON20-30
ORV7500
IMPACT ENERGY CLASSFT-LB7500
JOULES10170
OPERATING WEIGHTLBS5950
KG2698
OIL FLOWGPM63-72
LPM238-272
FREQUENCYBPM L-Mode230-400
BPM S-Mode270-470
OPERATING PRESSUREPSI2320-2600
BAR157-180
MECHANICAL ENERGYHP98-133
KW73.4-99.5
MECHANICAL ENERGY AVG.HP115.5
KW86
UNIT WORKING LENGTHINCHES124
CM315
TOOL DIAMETERINCHES6.1
MM155
TOOL WORKING LENGTHINCHES30.2
MM767
85DB(A) LEVEL DISTANCEFEET119-167
M36-51
CARRIER WEIGHT RANGE1000 LBS.60-92
TON27-42
ORV10000
IMPACT ENERGY CLASSFT-LB10000
JOULES13560
OPERATING WEIGHTLBS8400
KG3810
OIL FLOWGPM64-85
LPM242-322
FREQUENCYBPM L-Mode230-330
BPM S-Mode270-500
OPERATING PRESSUREPSI2170-2600
BAR147-180
MECHANICAL ENERGYHP94-158
KW70-117
MECHANICAL ENERGY AVG.HP126
KW94
UNIT WORKING LENGTHINCHES141
CM358
TOOL DIAMETERINCHES6.7
MM170
TOOL WORKING LENGTHINCHES34.9
-
85DB(A) LEVEL DISTANCEFEET120-162
M36-49
CARRIER WEIGHT RANGE1000 LBS.76-132
TON35-60
