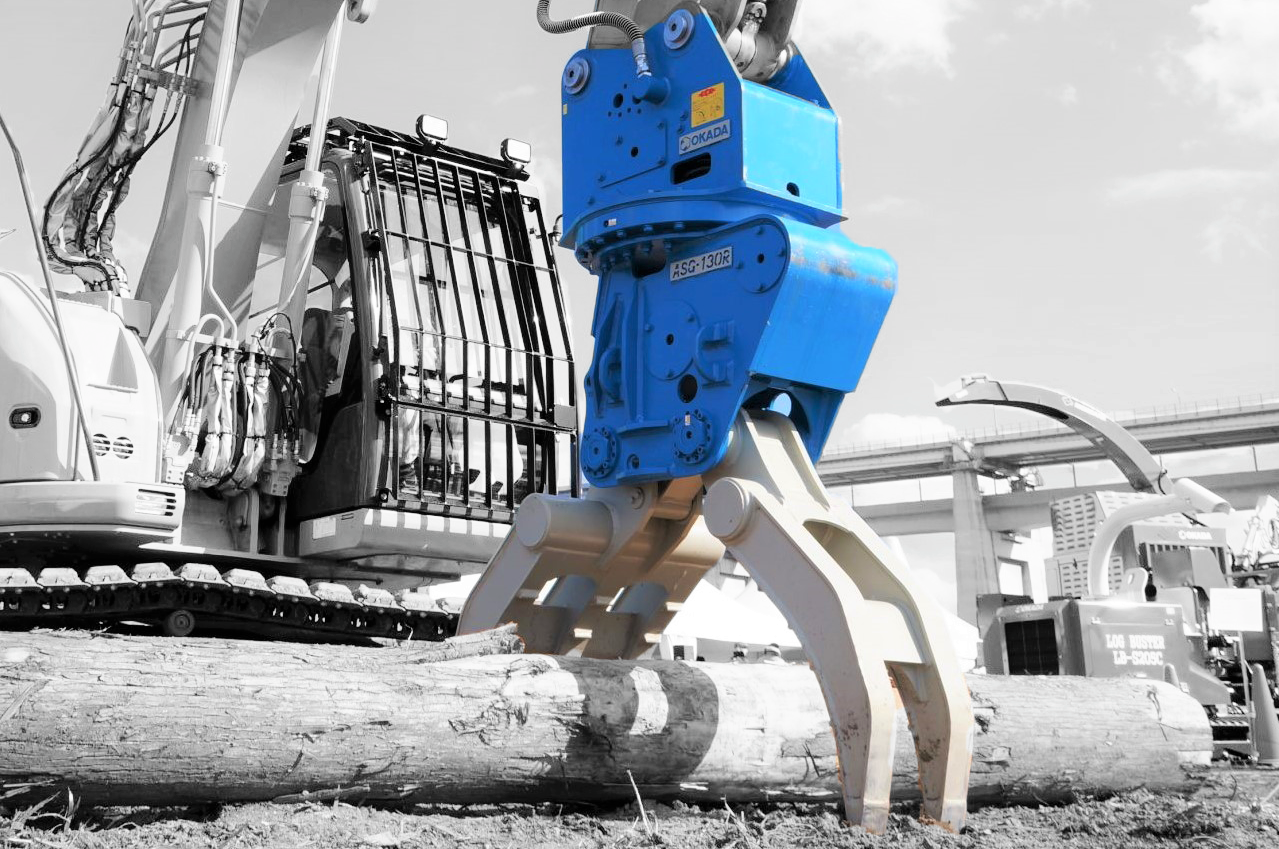

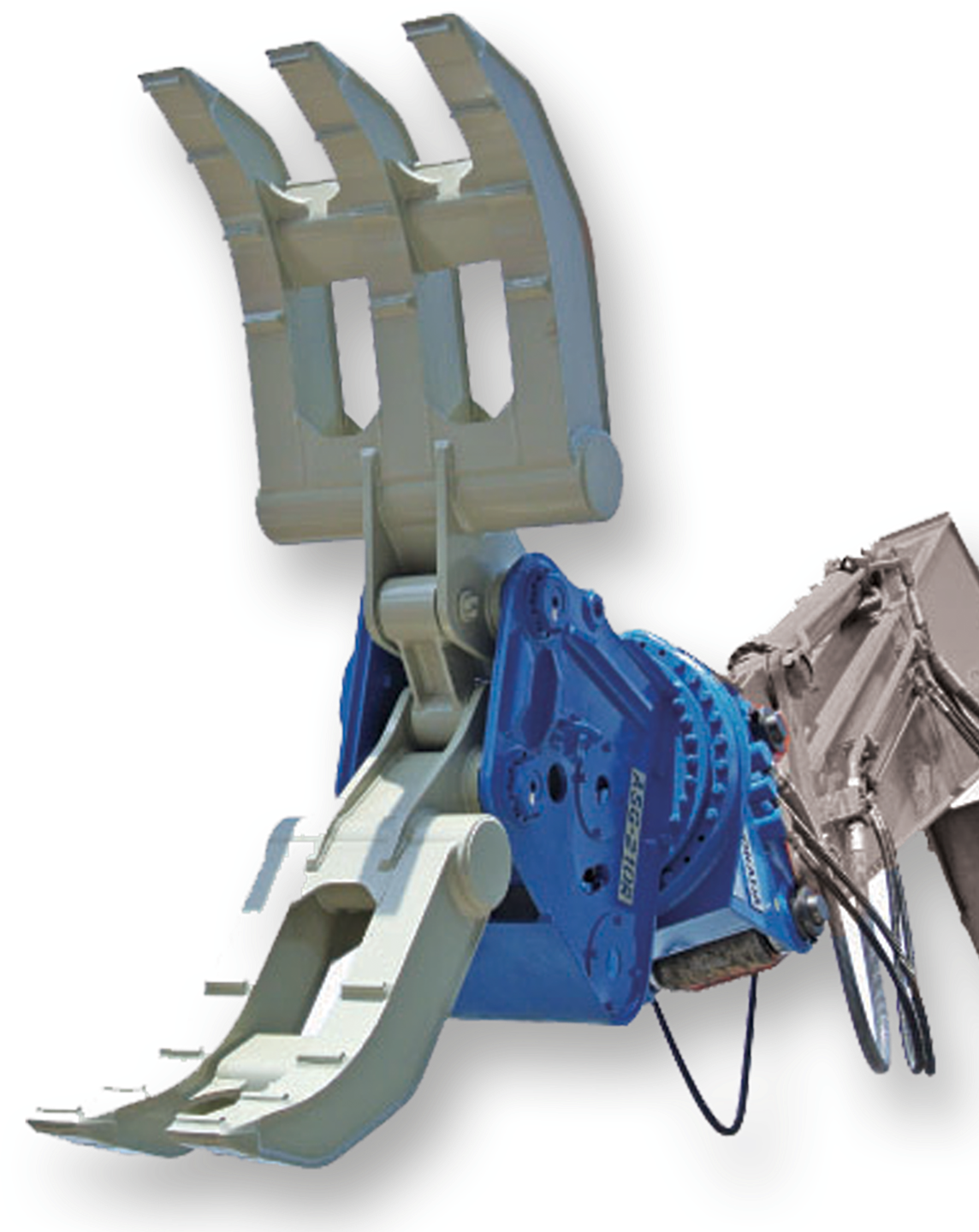

The ASG rotating grapple is used for demolition of wood structures, scrap handling, loading, sorting and other applications.
OPERATING WEIGHT | LBS |
KG | |
OIL FLOW | GPM |
LPM | |
OPERATING PRESSURE | PSI |
BAR | |
OVERALL LENGTH | INCHES |
MM | |
MAX CLAW OPENING | INCHES |
MM | |
CLAW WIDTH (3/2) | INCHES |
MM | |
CLAW DEPTH (3/2) | INCHES |
MM | |
CARRIER WEIGHT RANGE | 1000 LBS. |
M TON |
ASG-130R/RDF | ||
---|---|---|
OPERATING WEIGHT | LBS | 2140/2185 |
KG | 970/990 | |
OIL FLOW | GPM | UP TO 26 |
LPM | UP TO 100 | |
OPERATING PRESSURE | PSI | 4000 |
BAR | 280 | |
OVERALL LENGTH | INCHES | 88.8 |
MM | 2255 | |
MAX CLAW OPENING | INCHES | 72 |
MM | 1830 | |
CLAW WIDTH (3/2) | INCHES | 23.6/13.4 |
MM | 600/340 | |
CLAW DEPTH (3/2) | INCHES | 37.6 |
MM | 955 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 22-35 |
M TON | 10-16 |
ASG-210R | ||
---|---|---|
OPERATING WEIGHT | LBS | 3510 |
KG | 1590 | |
OIL FLOW | GPM | UP TO 53 |
LPM | UP TO 200 | |
OPERATING PRESSURE | PSI | 4000 |
BAR | 280 | |
OVERALL LENGTH | INCHES | 102.8 |
MM | 2610 | |
MAX CLAW OPENING | INCHES | 91.9 |
MM | 2335 | |
CLAW WIDTH (3/2) | INCHES | 31.5/18.1 |
MM | 800/460 | |
CLAW DEPTH (3/2) | INCHES | 47.2 |
MM | 1200 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 40-56 |
M TON | 18-25 |
ASG-30R/RD | ||
---|---|---|
OPERATING WEIGHT | LBS | 575/585 |
KG | 260/265 | |
OIL FLOW | GPM | UP TO 11 |
LPM | UP TO 40 | |
OPERATING PRESSURE | PSI | 3600/3000 |
BAR | 250/210 | |
OVERALL LENGTH | INCHES | 55.9 |
MM | 1420 | |
MAX CLAW OPENING | INCHES | 43.3 |
MM | 1100 | |
CLAW WIDTH (3/2) | INCHES | 11.6/6.1 |
MM | 295/155 | |
CLAW DEPTH (3/2) | INCHES | 25.8 |
MM | 655 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 5-12 |
M TON | 3-5 |
ASG-60R | ||
---|---|---|
OPERATING WEIGHT | LBS | 1170 |
KG | 530 | |
OIL FLOW | GPM | UP TO 16 |
LPM | UP TO 60 | |
OPERATING PRESSURE | PSI | 4000 |
BAR | 280 | |
OVERALL LENGTH | INCHES | 73.2 |
MM | 1860 | |
MAX CLAW OPENING | INCHES | 65 |
MM | 1650 | |
CLAW WIDTH (3/2) | INCHES | 18.9/10.6 |
MM | 480/270 | |
CLAW DEPTH (3/2) | INCHES | 33.7 |
MM | 855 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 13-20 |
M TON | 6-9 |
