Next product

Images

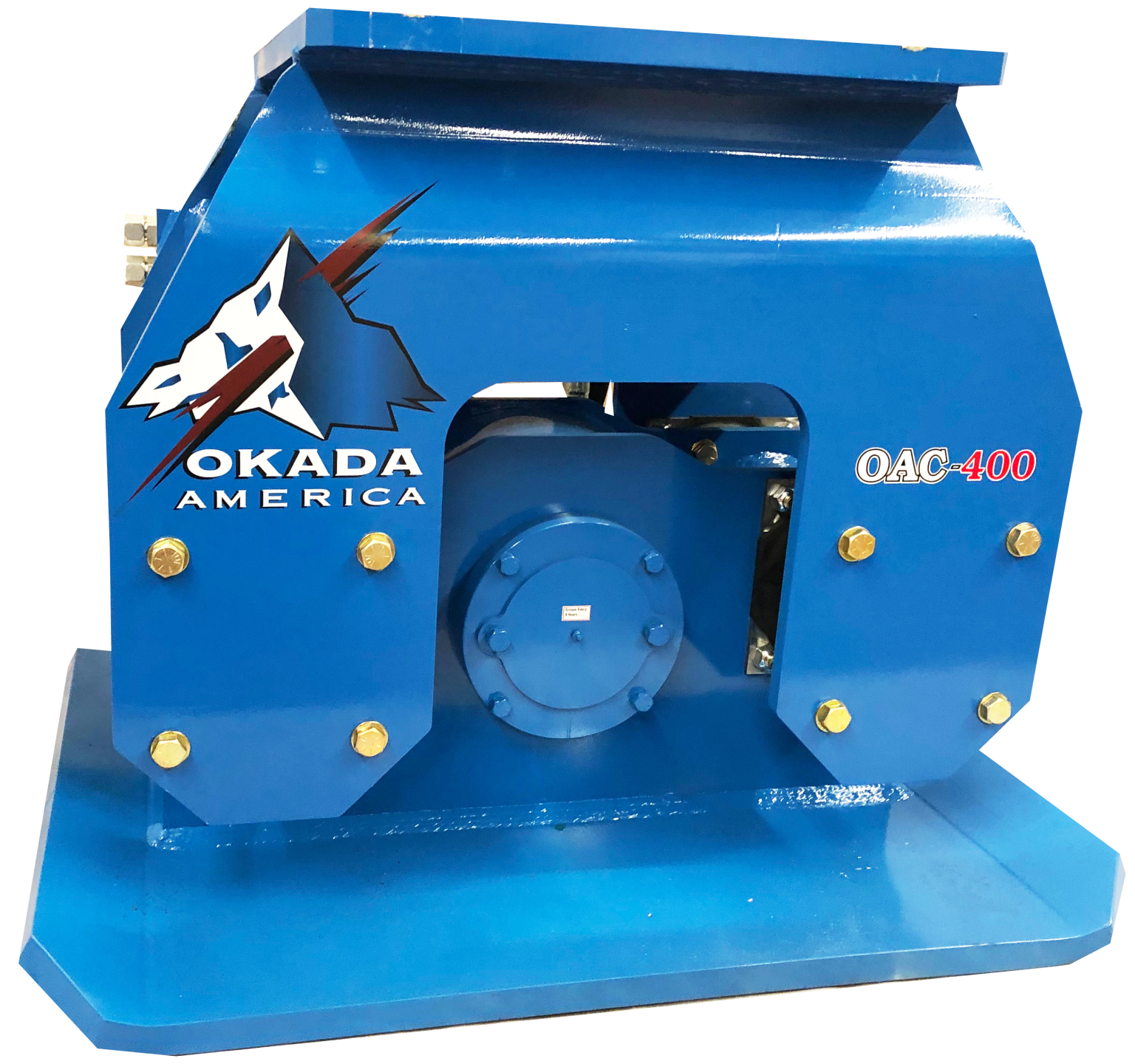

OAC400

PLATE COMPACTOR

 The OAC Series line of compactors provide solutions with superior power and efficiency for all your compaction tasks, and help ensure you meet Proctor soil density requirements.



Available Options

  • Backfill blade
  • Flow control manifold
  • Quick attach mounting system available for most models
  • Base plate extension for narrow trenches
  • Custom mounting specifications
DOWNLOAD BROCHURESpecification SheetDealer Logincontact sales
IMPULSE FORCELBS
-
OPERATING WEIGHTLBS
-
OIL FLOWGPM
-
FREQUENCYGPM
-
OPERATING PRESSUREPSI
-
BOTTOM PLATEINCHES
-
HEIGHTINCHES
-
LIFT COMPACTIONFeet
-
CARRIER WEIGHT RANGE1000 LBS.
-
OAC400
IMPULSE FORCELBS20,000
-
OPERATING WEIGHTLBS2200
-
OIL FLOWGPM40
-
FREQUENCYGPM2000
-
OPERATING PRESSUREPSI2200
-
BOTTOM PLATEINCHES34x43
-
HEIGHT-
42
LIFT COMPACTIONFeet5-7
-
CARRIER WEIGHT RANGE1000 LBS.40-56
-
OAC100
IMPULSE FORCELBS3150
-
OPERATING WEIGHTLBS370
-
OIL FLOWGPM10
-
FREQUENCYGPM2100
-
OPERATING PRESSUREPSI2200
-
BOTTOM PLATEINCHES11.5x30
-
HEIGHTINCHES18
-
LIFT COMPACTIONFeet1-3
-
CARRIER WEIGHT RANGE1000 LBS.4-14
-

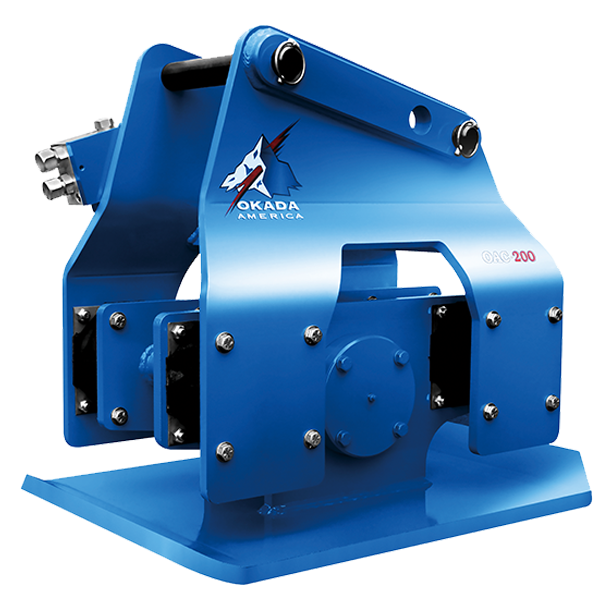

OAC200
IMPULSE FORCELBS6500
-
OPERATING WEIGHTLBS840
-
OIL FLOWGPM20
-
FREQUENCYGPM2000
-
OPERATING PRESSUREPSI2200
-
BOTTOM PLATEINCHES23x34
-
HEIGHTINCHES30
-
LIFT COMPACTIONFeet2-4
-
CARRIER WEIGHT RANGE1000 LBS.12-18
-
OAC300
IMPULSE FORCELBS13,500
-
OPERATING WEIGHTLBS1500
-
OIL FLOWGPM30
-
FREQUENCYGPM2000
-
OPERATING PRESSUREPSI2200
-
BOTTOM PLATEINCHES28x44
-
HEIGHTINCHES37
-
LIFT COMPACTIONFeet3-5
-
CARRIER WEIGHT RANGE1000 LBS.20-40
-
OAC500
IMPULSE FORCELBS22,000
-
OPERATING WEIGHTLBS2200
-
OIL FLOWGPM50
-
FREQUENCYGPM2100
-
OPERATING PRESSUREPSI2200
-
BOTTOM PLATEINCHES34x43
-
HEIGHTINCHES42
-
LIFT COMPACTIONFeet5-7
-
CARRIER WEIGHT RANGE1000 LBS.56-86
-

Available Options

  • Backfill blade
  • Flow control manifold
  • Quick attach mounting system available for most models
  • Base plate extension for narrow trenches
  • Custom mounting specifications
