ORC220A

ROTATING PULVERIZER

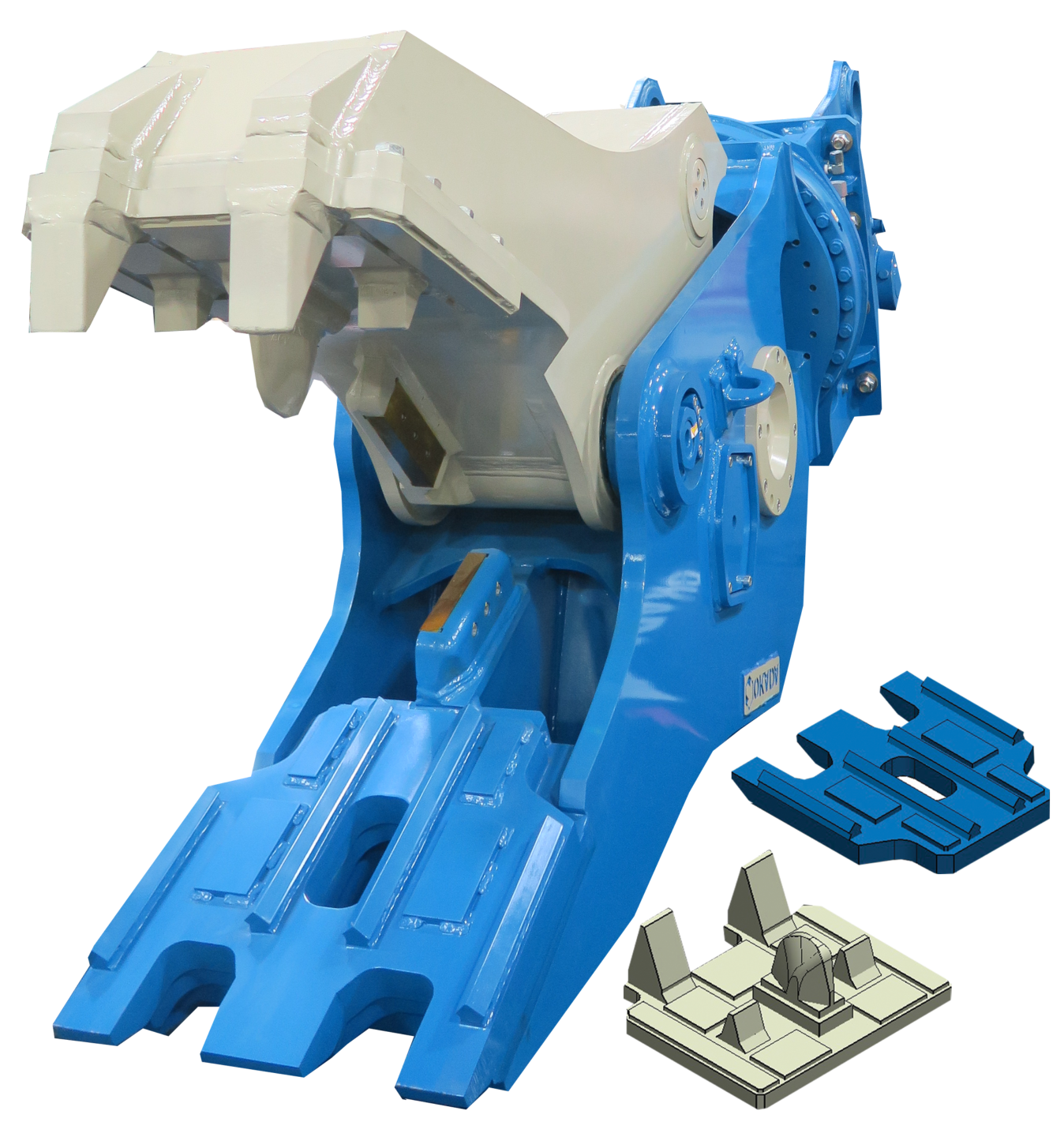

ORC220A with replaceable tooth pads

  • 5,340 lbs operating weight.
  • Carriers from 40,000 to 84,000 lbs.

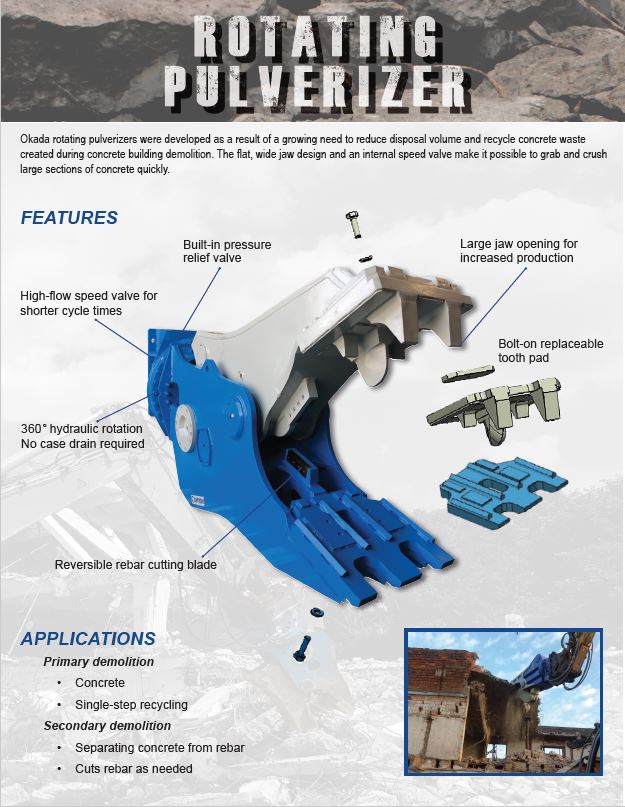

Secondary breaking crushers were developed as a result of a growing need to reduce disposal volume and recycle concrete waste created during concrete building demolition. The flat, wide jaw design and an internal speed valve make it possible to grab and crush large sections of concrete quickly.

DOWNLOAD BROCHUREDealer Logincontact sales

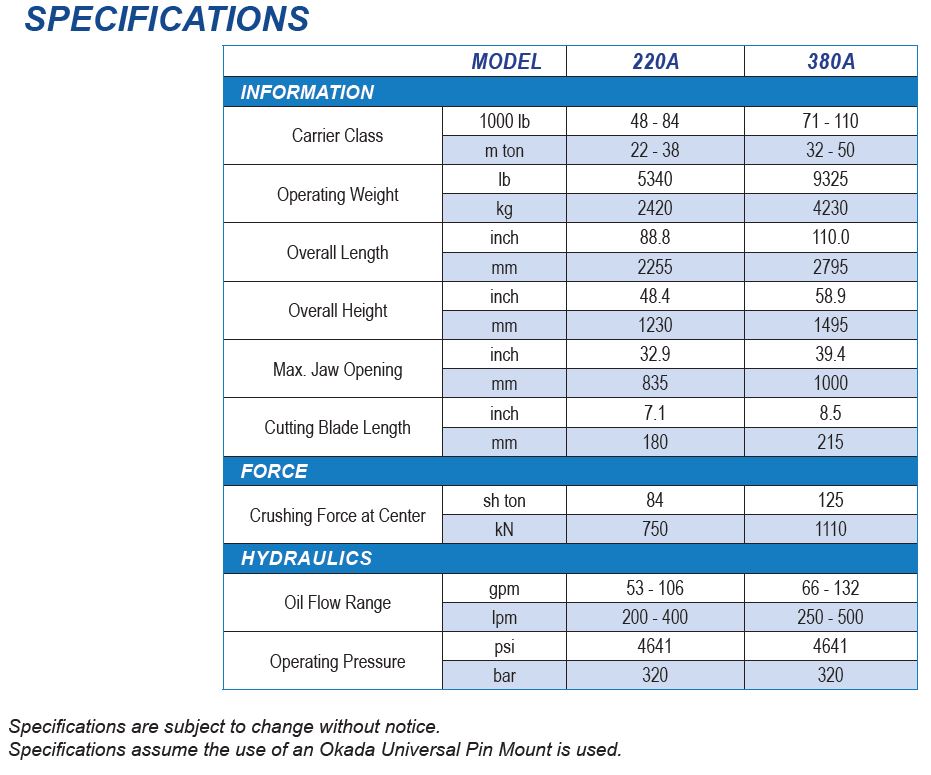

OPERATING WEIGHTLBS
KG
OIL FLOWGPM
LPM
OPERATING PRESSUREPSI
BAR
OVERALL LENGTHINCHES
MM
OVERALL HEIGHTINCHES
MM
MAX JAW OPENINGINCHES
MM
CUTTER BLADE LENGTHINCHES
MM
CRUSHING FORCE AT CENTER OF JAWUS Tons
kN
CARRIER WEIGHT RANGE1000 LBS.
TON
ORC220A
OPERATING WEIGHTLBS5340
KG2420
OIL FLOWGPM53-106
LPM200-400
OPERATING PRESSUREPSI4600
BAR32
OVERALL LENGTHINCHES88.8
MM2255
OVERALL HEIGHTINCHES48.4
MM1230
MAX JAW OPENINGINCHES31.7
MM805
CUTTER BLADE LENGTHINCHES7.1
MM180
CRUSHING FORCE AT CENTER OF JAWUS Tons84
kN750
CARRIER WEIGHT RANGE1000 LBS.48-84
TON22-38
