ORG14R-HD

For 5-8 m ton carrier

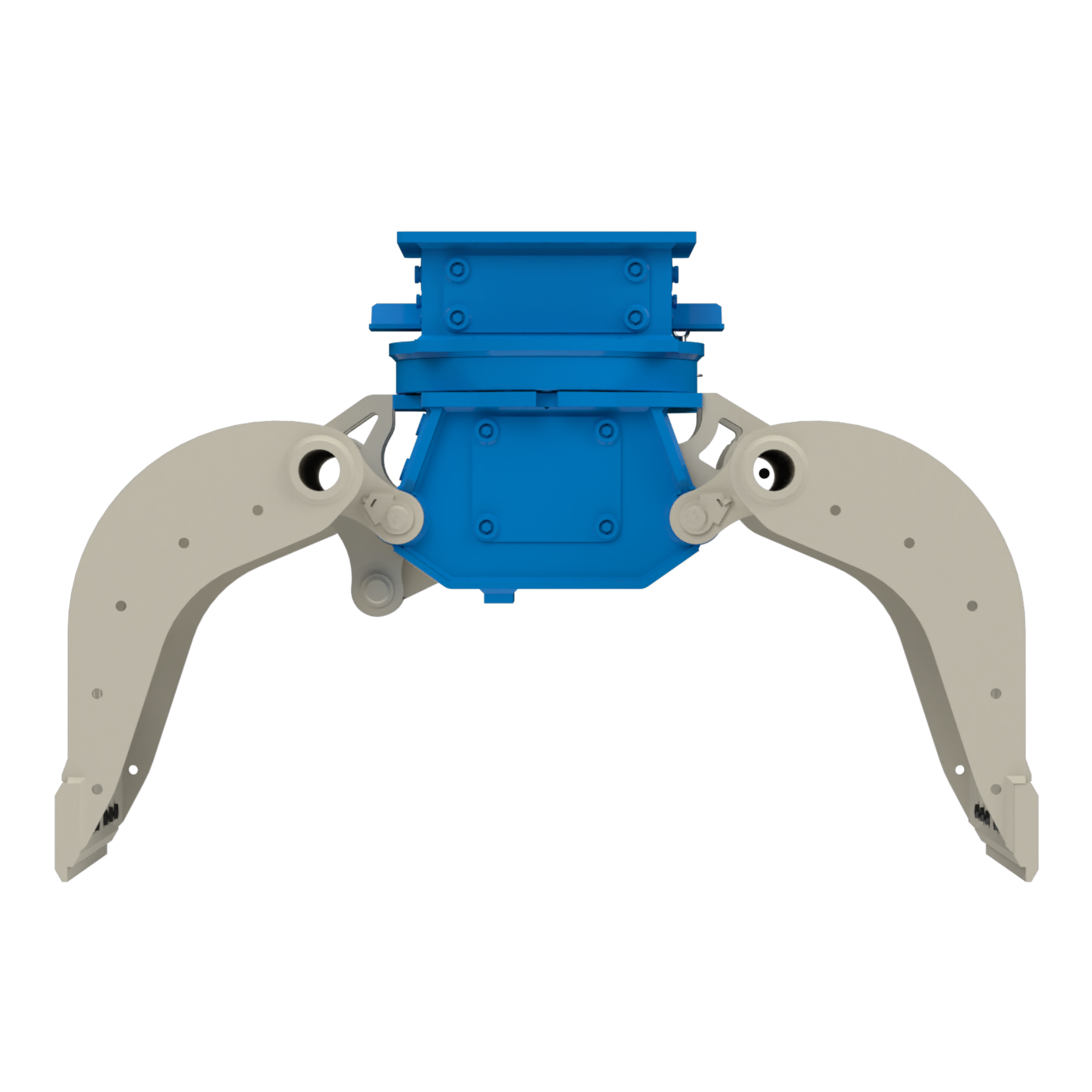

The Okada HD Rotating Grapple, is an indispensable piece of equipment designed to tackle the diverse demands of construction and demolition sites with unparalleled efficiency and precision. With its robust design and advanced features, the Okada HD Rotating Grapple effortlessly performs tasks ranging from material handling and demolition to sorting, clearing debris, site preparation, and loading/unloading operations. Engineered to excel in even the most demanding environments, this grapple revolutionizes workflows, making every job easier and more streamlined.



Application

  • Material Handling (concrete • steel • wood • debris • other construction material)
  • Demolition of Structures (breaks apart concrete and the dismantling of large structures)
  • Sorting and separating materials for recycling and disposal
  • Clearing debris and waste from jobsites
  • Site preparation
DOWNLOAD BROCHUREDealer Logincontact sales
OPERATING WEIGHTLBS
KG
MAX JAW OPENINGINCHES
MM
JAW LENGTHINCHES
MM
HEIGHTINCHES
MM
OIL FLOWGPM
LPM
OPERATING PRESSUREPSI
BAR
VOLUMEft³
L
CARRIER WEIGHT RANGE1000 LBS.
M TON
ORG14R-HD
OPERATING WEIGHTLBS1359
KG617
MAX JAW OPENINGINCHES59
MM1500
JAW LENGTHINCHES24
MM600
HEIGHTINCHES43
MM1100
OIL FLOWGPM5.2-7.9
LPM20-30
OPERATING PRESSUREPSI2900-3625
BAR200-250
VOLUMEft³7.1
L200
CARRIER WEIGHT RANGE1000 LBS.11-17
M TON5-8
