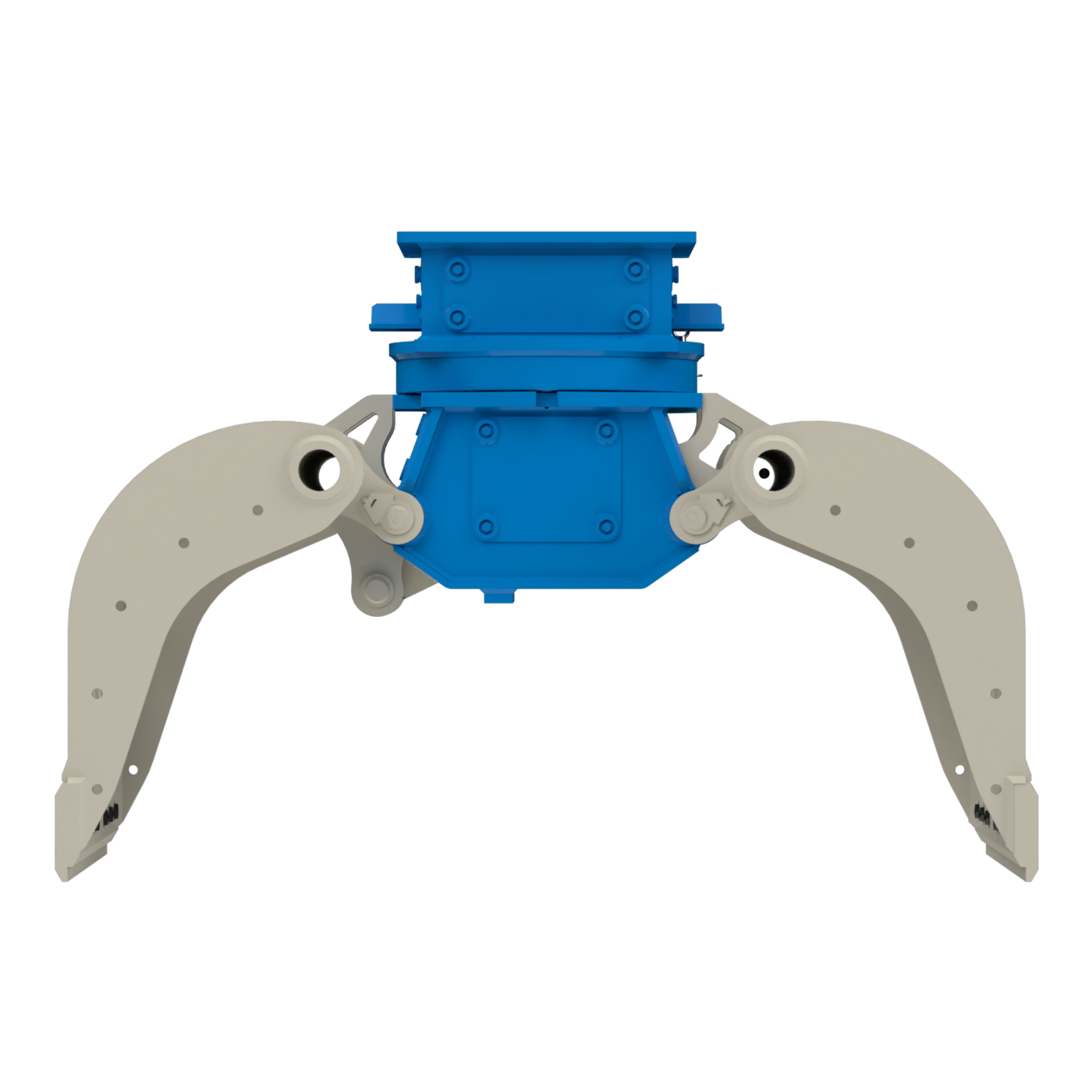

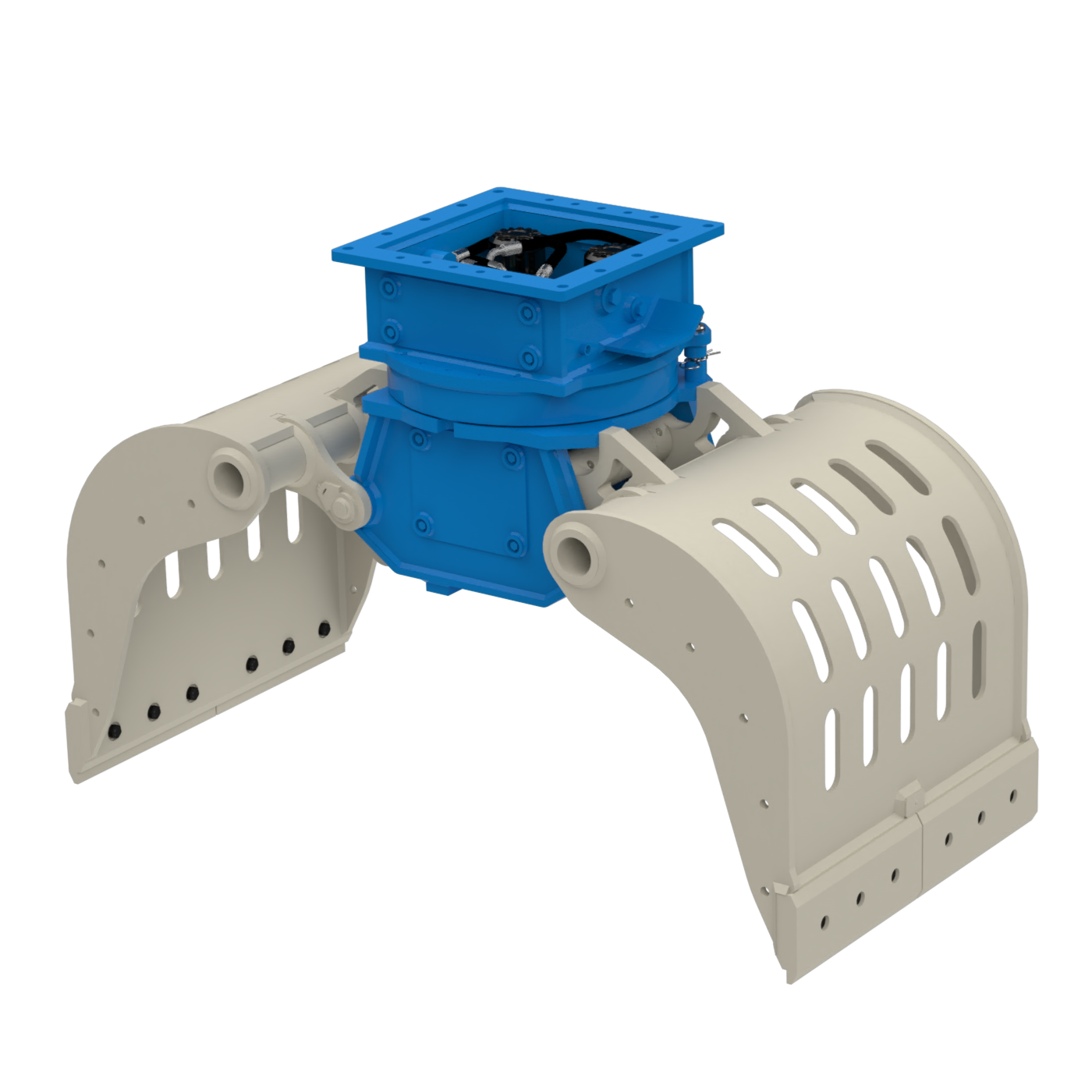

The Okada HD Rotating Grapple, is an indispensable piece of equipment designed to tackle the diverse demands of construction and demolition sites with unparalleled efficiency and precision. With its robust design and advanced features, the Okada HD Rotating Grapple effortlessly performs tasks ranging from material handling and demolition to sorting, clearing debris, site preparation, and loading/unloading operations. Engineered to excel in even the most demanding environments, this grapple revolutionizes workflows, making every job easier and more streamlined.
Application
OPERATING WEIGHT | LBS |
KG | |
MAX JAW OPENING | INCHES |
MM | |
JAW LENGTH | INCHES |
MM | |
HEIGHT | INCHES |
MM | |
OIL FLOW | GPM |
LPM | |
OPERATING PRESSURE | PSI |
BAR | |
VOLUME | ft³ |
L | |
CARRIER WEIGHT RANGE | 1000 LBS. |
M TON |
ORG23R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 2277 |
KG | 1034 | |
MAX JAW OPENING | INCHES | 67 |
MM | 1700 | |
JAW LENGTH | INCHES | 32 |
MM | 800 | |
HEIGHT | INCHES | 45 |
MM | 1140 | |
OIL FLOW | GPM | 5.2-7.9 |
LPM | 20-30 | |
OPERATING PRESSURE | PSI | 4350-4640 |
BAR | 300-320 | |
VOLUME | ft³ | 14.1 |
L | 400 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 24-33 |
M TON | 10-15 |
ORG8R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 829 |
KG | 377 | |
MAX JAW OPENING | INCHES | 43 |
MM | 1100 | |
JAW LENGTH | INCHES | 20 |
MM | 500 | |
HEIGHT | INCHES | 32 |
MM | 800 | |
OIL FLOW | GPM | 2.6-3.9 |
LPM | 10-15 | |
OPERATING PRESSURE | PSI | 2900-3625 |
BAR | 200-250 | |
VOLUME | ft³ | 3.5 |
L | 7.1 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 6.6-13 |
M TON | 3-6 |
ORG14R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 1359 |
KG | 617 | |
MAX JAW OPENING | INCHES | 59 |
MM | 1500 | |
JAW LENGTH | INCHES | 24 |
MM | 600 | |
HEIGHT | INCHES | 43 |
MM | 1100 | |
OIL FLOW | GPM | 5.2-7.9 |
LPM | 20-30 | |
OPERATING PRESSURE | PSI | 2900-3625 |
BAR | 200-250 | |
VOLUME | ft³ | 7.1 |
L | 200 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 11-17 |
M TON | 5-8 |
ORG18R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 1828 |
KG | 830 | |
MAX JAW OPENING | INCHES | 65 |
MM | 1650 | |
JAW LENGTH | INCHES | 24 |
MM | 600 | |
HEIGHT | INCHES | 45 |
MM | 1130 | |
OIL FLOW | GPM | 5.2-7.9 |
LPM | 20-30 | |
OPERATING PRESSURE | PSI | 3625-4350 |
BAR | 250-300 | |
VOLUME | ft³ | 10.6 |
L | 300 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 15-24 |
M TON | 7-11 |
ORG32R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 3156 |
KG | 1432 | |
MAX JAW OPENING | INCHES | 79 |
MM | 2000 | |
JAW LENGTH | INCHES | 30 |
MM | 750 | |
HEIGHT | INCHES | 53 |
MM | 1340 | |
OIL FLOW | GPM | 13.2-15.8 |
LPM | 50-60 | |
OPERATING PRESSURE | PSI | 4350-5075 |
BAR | 300-350 | |
VOLUME | ft³ | 17.7 |
L | 500 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 30-39 |
M TON | 14-18 |
ORG40R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 3487 |
KG | 1582 | |
MAX JAW OPENING | INCHES | 79 |
MM | 2000 | |
JAW LENGTH | INCHES | 39 |
MM | 1000 | |
HEIGHT | INCHES | 53 |
MM | 1340 | |
OIL FLOW | GPM | 13.2-15.8 |
LPM | 50-60 | |
OPERATING PRESSURE | PSI | 4350-5075 |
BAR | 300-350 | |
VOLUME | ft³ | 24.7 |
L | 700 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 39-48 |
M TON | 18-22 |
ORG47R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 3685 |
KG | 1672 | |
MAX JAW OPENING | INCHES | 83 |
MM | 2100 | |
JAW LENGTH | INCHES | 39 |
MM | 1000 | |
HEIGHT | INCHES | 54 |
MM | 1370 | |
OIL FLOW | GPM | 13.2-15.8 |
LPM | 50-60 | |
OPERATING PRESSURE | PSI | 4350-5075 |
BAR | 300-350 | |
VOLUME | ft³ | 28.3 |
L | 800 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 46-55 |
M TON | 21-25 |
ORG51R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 5118 |
KG | 2322 | |
MAX JAW OPENING | INCHES | 88 |
MM | 2230 | |
JAW LENGTH | INCHES | 47 |
MM | 1200 | |
HEIGHT | INCHES | 59 |
MM | 1490 | |
OIL FLOW | GPM | 18.4-21.1 |
LPM | 70-80 | |
OPERATING PRESSURE | PSI | 4350-5075 |
BAR | 300-350 | |
VOLUME | ft³ | 31.8 |
L | 900 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 55-66 |
M TON | 25-30 |
ORG57R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 5692 |
KG | 2582 | |
MAX JAW OPENING | INCHES | 88 |
MM | 2240 | |
JAW LENGTH | INCHES | 51 |
MM | 1300 | |
HEIGHT | INCHES | 59 |
MM | 1500 | |
OIL FLOW | GPM | 18.4-21.1 |
LPM | 70-80 | |
OPERATING PRESSURE | PSI | 4350-5075 |
BAR | 300-350 | |
VOLUME | ft³ | 35.3 |
L | 1000 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 66-77 |
M TON | 30-35 |
ORG64R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 6227 |
KG | 2825 | |
MAX JAW OPENING | INCHES | 88 |
MM | 2240 | |
JAW LENGTH | INCHES | 53 |
MM | 1350 | |
HEIGHT | INCHES | 59 |
MM | 1500 | |
OIL FLOW | GPM | 18.4-21.1 |
LPM | 70-80 | |
OPERATING PRESSURE | PSI | 4350-5075 |
BAR | 300-350 | |
VOLUME | ft³ | 38.8 |
L | 1100 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 77-88 |
M TON | 35-40 |
ORG81R-HD | ||
---|---|---|
OPERATING WEIGHT | LBS | 8068 |
KG | 3660 | |
MAX JAW OPENING | INCHES | 97 |
MM | 2450 | |
JAW LENGTH | INCHES | 59 |
MM | 1500 | |
HEIGHT | INCHES | 62 |
MM | 1565 | |
OIL FLOW | GPM | 26.4-31.7 |
LPM | 100-120 | |
OPERATING PRESSURE | PSI | 4350-5075 |
BAR | 300-350 | |
VOLUME | ft³ | 47.7 |
L | 1350 | |
CARRIER WEIGHT RANGE | 1000 LBS. | 88-110 |
M TON | 40-50 |
