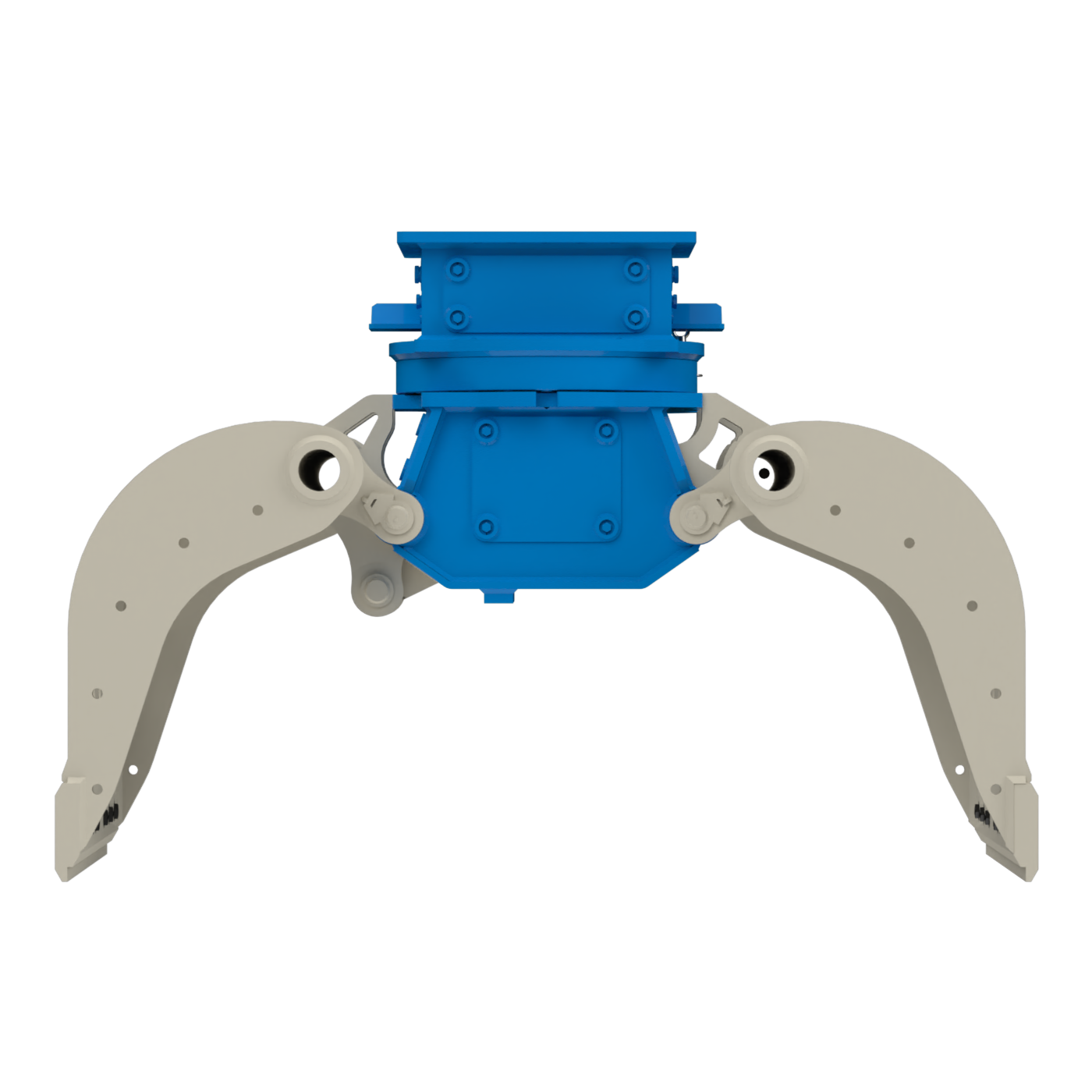

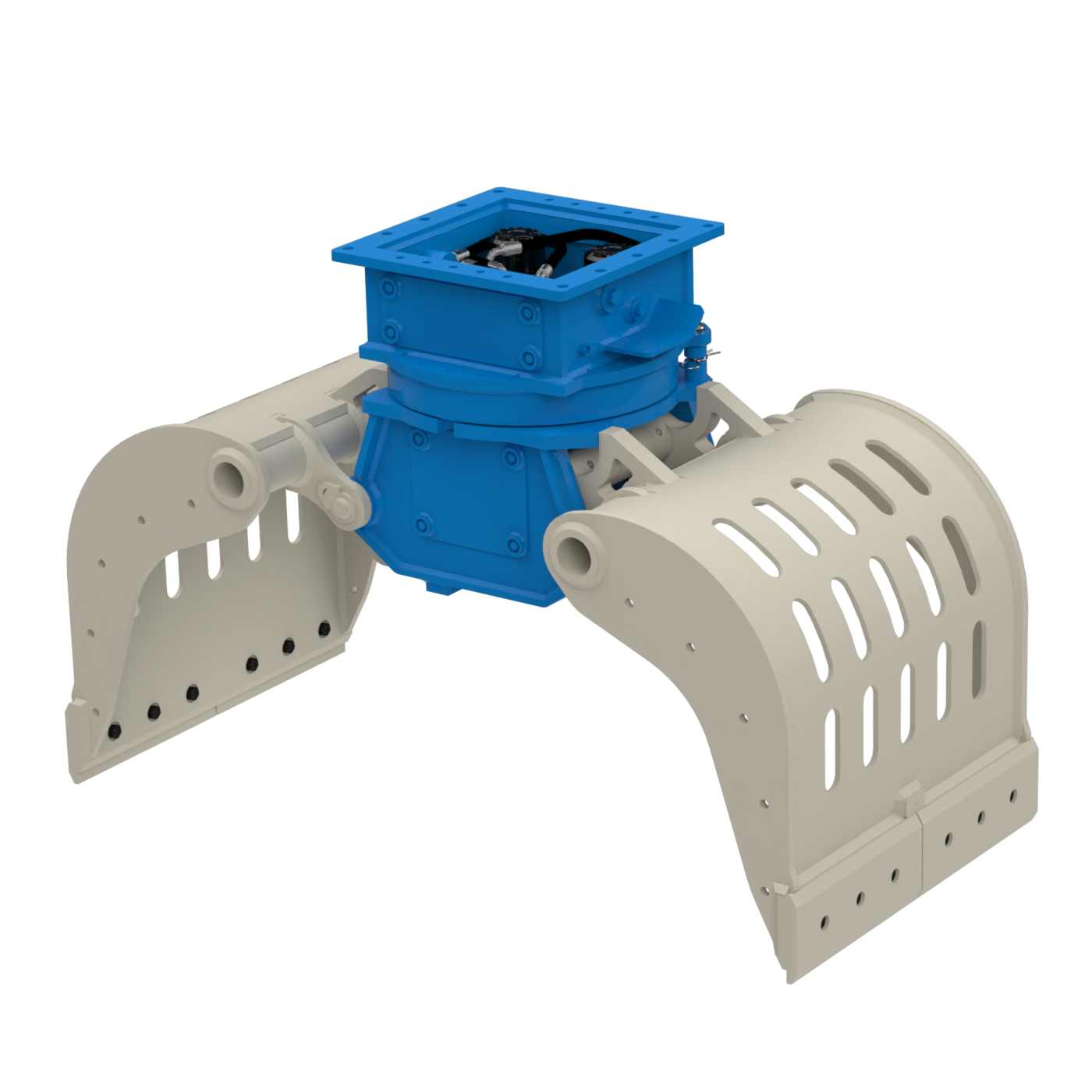

ORG40R-HD

For 18-22 m ton carrier

The Okada HD Rotating Grapple, is an indispensable piece of equipment designed to tackle the diverse demands of construction and demolition sites with unparalleled efficiency and precision. With its robust design and advanced features, the Okada HD Rotating Grapple effortlessly performs tasks ranging from material handling and demolition to sorting, clearing debris, site preparation, and loading/unloading operations. Engineered to excel in even the most demanding environments, this grapple revolutionizes workflows, making every job easier and more streamlined.



Application

  • Material Handling (concrete • steel • wood • debris • other construction material)
  • Demolition of Structures (breaks apart concrete and the dismantling of large structures)
  • Sorting and separating materials for recycling and disposal
  • Clearing debris and waste from jobsites
  • Site preparation
DOWNLOAD BROCHUREDealer Logincontact sales
OPERATING WEIGHTLBS
KG
MAX JAW OPENINGINCHES
MM
JAW LENGTHINCHES
MM
HEIGHTINCHES
MM
OIL FLOWGPM
LPM
OPERATING PRESSUREPSI
BAR
VOLUMEft³
L
CARRIER WEIGHT RANGE1000 LBS.
M TON
ORG40R-HD
OPERATING WEIGHTLBS3487
KG1582
MAX JAW OPENINGINCHES79
MM2000
JAW LENGTHINCHES39
MM1000
HEIGHTINCHES53
MM1340
OIL FLOWGPM13.2-15.8
LPM50-60
OPERATING PRESSUREPSI4350-5075
BAR300-350
VOLUMEft³24.7
L700
CARRIER WEIGHT RANGE1000 LBS.39-48
M TON18-22
ORG8R-HD
OPERATING WEIGHTLBS829
KG377
MAX JAW OPENINGINCHES43
MM1100
JAW LENGTHINCHES20
MM500
HEIGHTINCHES32
MM800
OIL FLOWGPM2.6-3.9
LPM10-15
OPERATING PRESSUREPSI2900-3625
BAR200-250
VOLUMEft³3.5
L7.1
CARRIER WEIGHT RANGE1000 LBS.6.6-13
M TON3-6
ORG14R-HD
OPERATING WEIGHTLBS1359
KG617
MAX JAW OPENINGINCHES59
MM1500
JAW LENGTHINCHES24
MM600
HEIGHTINCHES43
MM1100
OIL FLOWGPM5.2-7.9
LPM20-30
OPERATING PRESSUREPSI2900-3625
BAR200-250
VOLUMEft³7.1
L200
CARRIER WEIGHT RANGE1000 LBS.11-17
M TON5-8
ORG18R-HD
OPERATING WEIGHTLBS1828
KG830
MAX JAW OPENINGINCHES65
MM1650
JAW LENGTHINCHES24
MM600
HEIGHTINCHES45
MM1130
OIL FLOWGPM5.2-7.9
LPM20-30
OPERATING PRESSUREPSI3625-4350
BAR250-300
VOLUMEft³10.6
L300
CARRIER WEIGHT RANGE1000 LBS.15-24
M TON7-11
ORG23R-HD
OPERATING WEIGHTLBS2277
KG1034
MAX JAW OPENINGINCHES67
MM1700
JAW LENGTHINCHES32
MM800
HEIGHTINCHES45
MM1140
OIL FLOWGPM5.2-7.9
LPM20-30
OPERATING PRESSUREPSI4350-4640
BAR300-320
VOLUMEft³14.1
L400
CARRIER WEIGHT RANGE1000 LBS.24-33
M TON10-15
ORG32R-HD
OPERATING WEIGHTLBS3156
KG1432
MAX JAW OPENINGINCHES79
MM2000
JAW LENGTHINCHES30
MM750
HEIGHTINCHES53
MM1340
OIL FLOWGPM13.2-15.8
LPM50-60
OPERATING PRESSUREPSI4350-5075
BAR300-350
VOLUMEft³17.7
L500
CARRIER WEIGHT RANGE1000 LBS.30-39
M TON14-18
ORG47R-HD
OPERATING WEIGHTLBS3685
KG1672
MAX JAW OPENINGINCHES83
MM2100
JAW LENGTHINCHES39
MM1000
HEIGHTINCHES54
MM1370
OIL FLOWGPM13.2-15.8
LPM50-60
OPERATING PRESSUREPSI4350-5075
BAR300-350
VOLUMEft³28.3
L800
CARRIER WEIGHT RANGE1000 LBS.46-55
M TON21-25
ORG51R-HD
OPERATING WEIGHTLBS5118
KG2322
MAX JAW OPENINGINCHES88
MM2230
JAW LENGTHINCHES47
MM1200
HEIGHTINCHES59
MM1490
OIL FLOWGPM18.4-21.1
LPM70-80
OPERATING PRESSUREPSI4350-5075
BAR300-350
VOLUMEft³31.8
L900
CARRIER WEIGHT RANGE1000 LBS.55-66
M TON25-30
ORG57R-HD
OPERATING WEIGHTLBS5692
KG2582
MAX JAW OPENINGINCHES88
MM2240
JAW LENGTHINCHES51
MM1300
HEIGHTINCHES59
MM1500
OIL FLOWGPM18.4-21.1
LPM70-80
OPERATING PRESSUREPSI4350-5075
BAR300-350
VOLUMEft³35.3
L1000
CARRIER WEIGHT RANGE1000 LBS.66-77
M TON30-35
ORG64R-HD
OPERATING WEIGHTLBS6227
KG2825
MAX JAW OPENINGINCHES88
MM2240
JAW LENGTHINCHES53
MM1350
HEIGHTINCHES59
MM1500
OIL FLOWGPM18.4-21.1
LPM70-80
OPERATING PRESSUREPSI4350-5075
BAR300-350
VOLUMEft³38.8
L1100
CARRIER WEIGHT RANGE1000 LBS.77-88
M TON35-40
ORG81R-HD
OPERATING WEIGHTLBS8068
KG3660
MAX JAW OPENINGINCHES97
MM2450
JAW LENGTHINCHES59
MM1500
HEIGHTINCHES62
MM1565
OIL FLOWGPM26.4-31.7
LPM100-120
OPERATING PRESSUREPSI4350-5075
BAR300-350
VOLUMEft³47.7
L1350
CARRIER WEIGHT RANGE1000 LBS.88-110
M TON40-50
