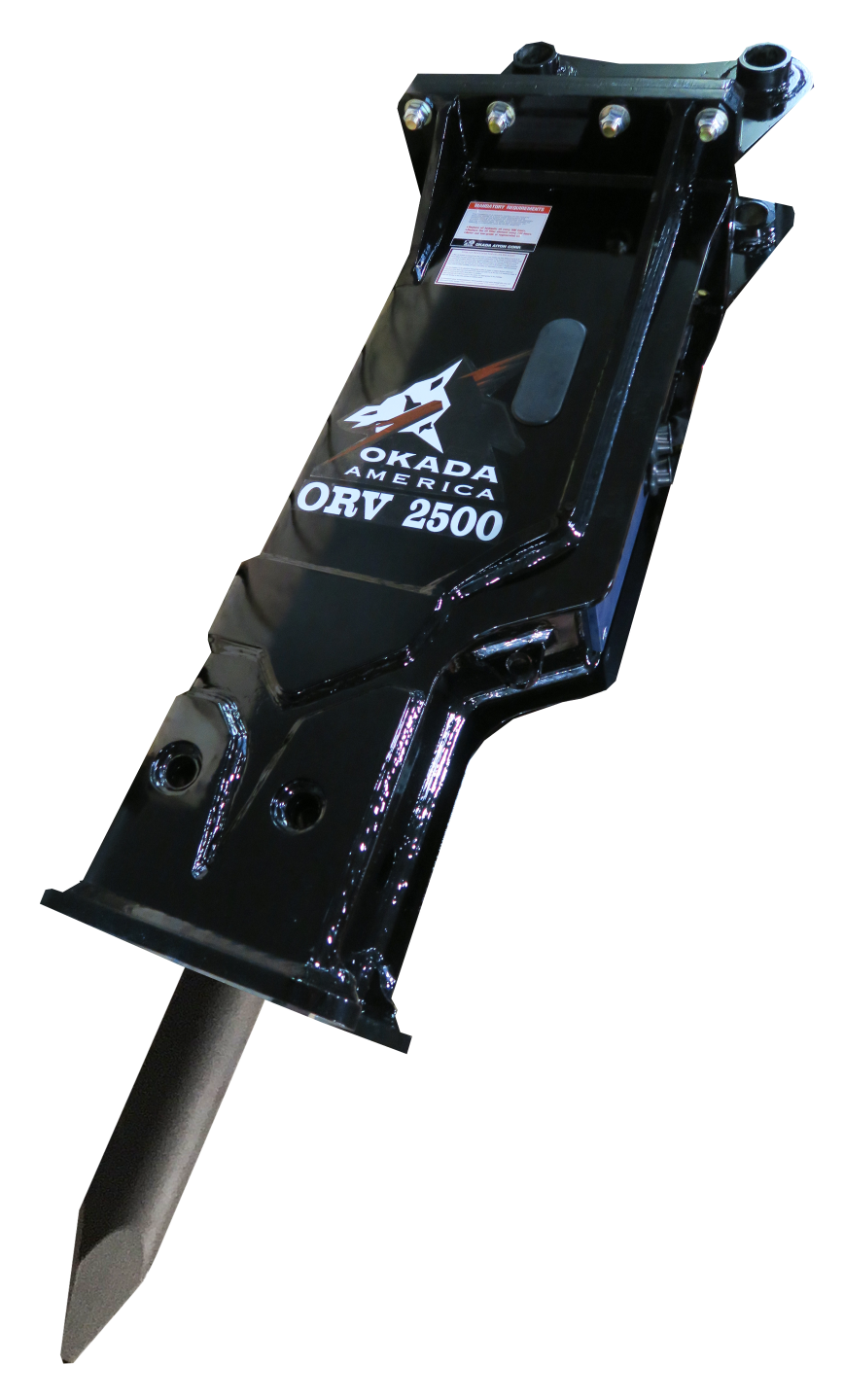

Okada ORV2500H hydraulic breaker attachment

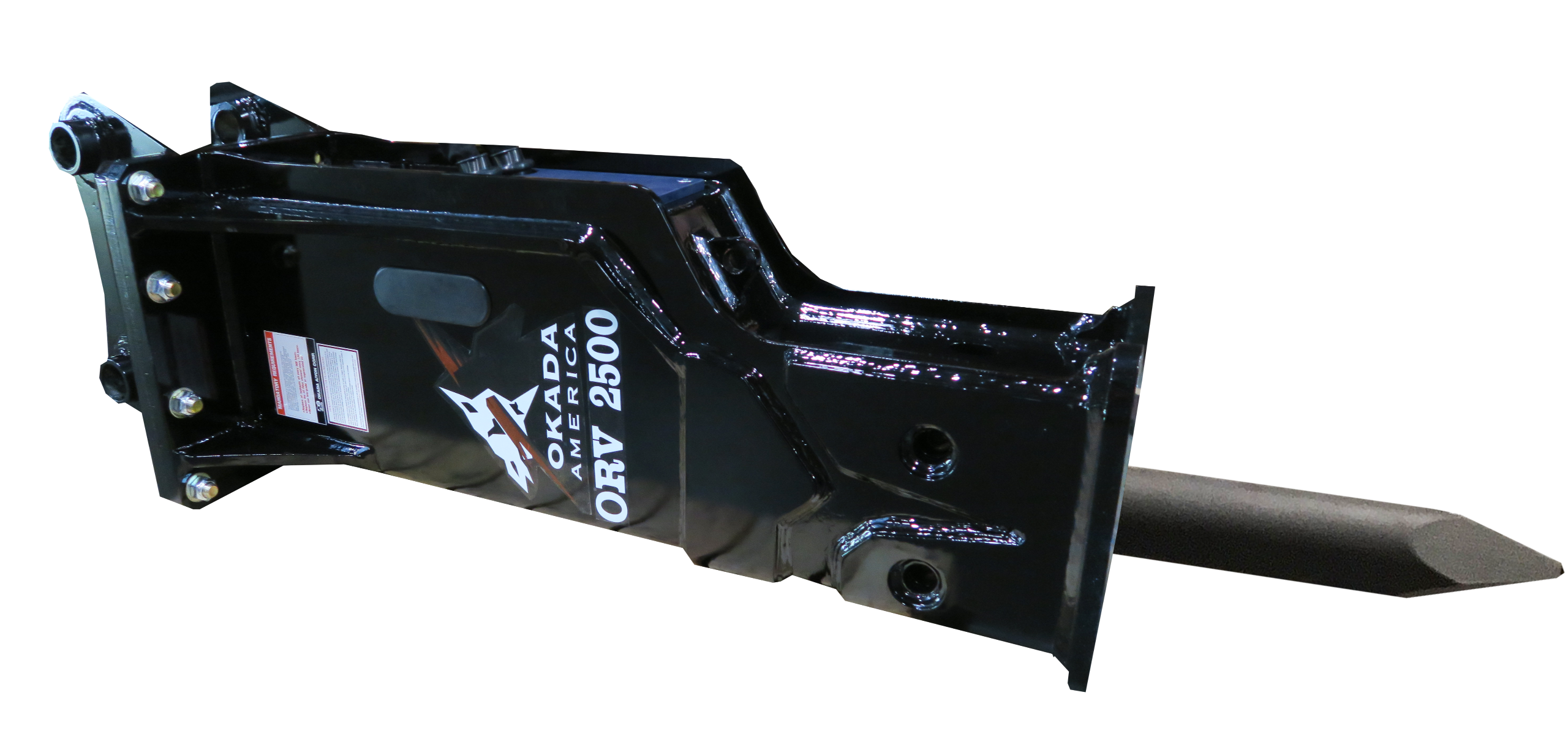

Okada ORV2500H hydraulic breaker attachment

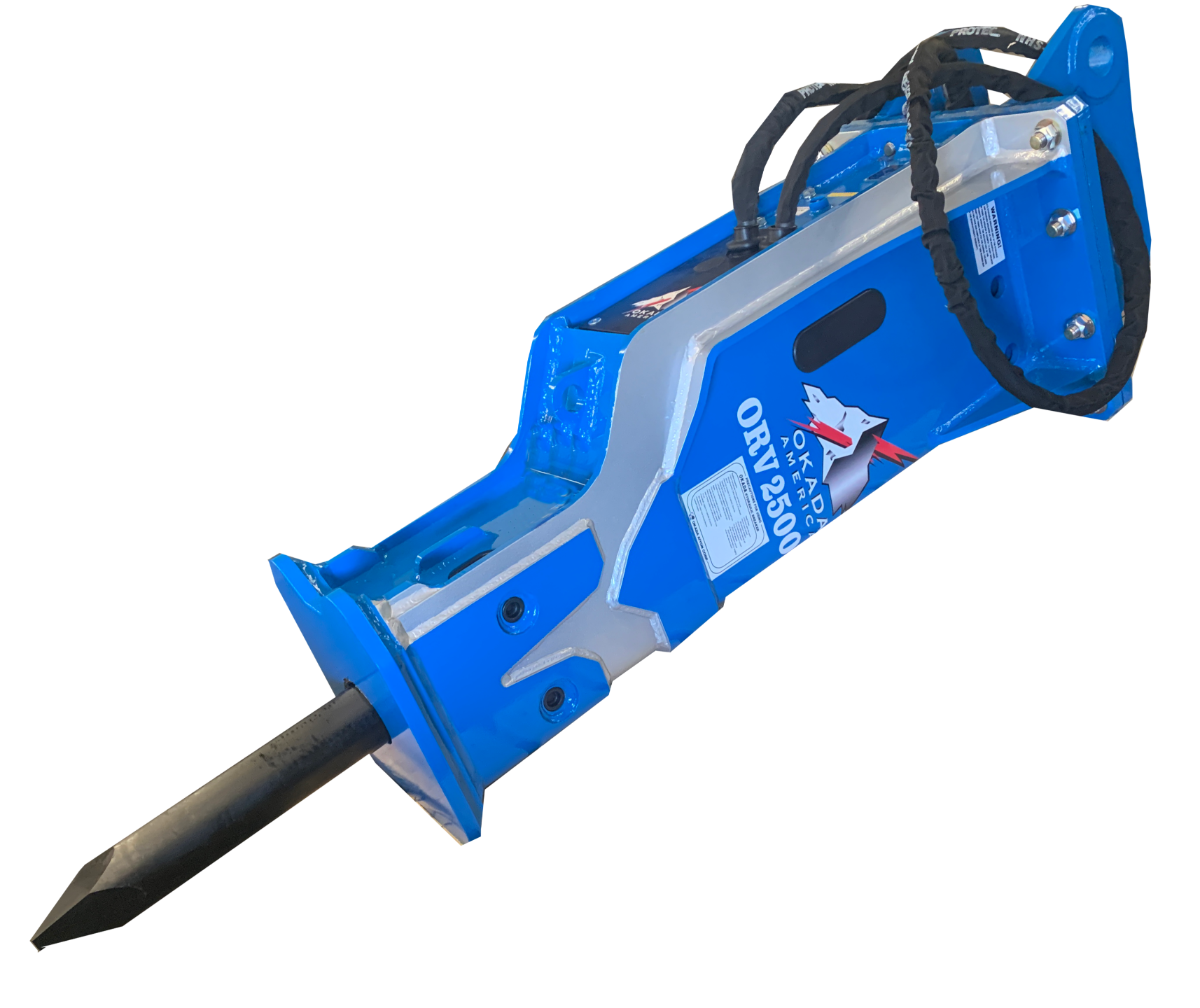

Okada ORV2500H hydraulic breaker attachment

Images

Okada ORV2500H hydraulic breaker attachment

Okada ORV2500H hydraulic breaker attachment

Okada ORV2500H hydraulic breaker attachment

ORV2500H

MID CLASS ORV HYRRAULIC BREAKER

DOWNLOAD BROCHURE Dealer Login contact sales

Specifications


IMPACT ENERGY CLASS	FT-LB
IMPACT ENERGY CLASS	JOULES
OPERATING WEIGHT	LBS
OPERATING WEIGHT	KG
OIL FLOW	GPM
OIL FLOW	LPM
FREQUENCY	BPM L-Mode
FREQUENCY	BPM S-Mode
OPERATING PRESSURE	PSI
OPERATING PRESSURE	BAR
MECHANICAL ENERGY	HP
MECHANICAL ENERGY	KW
MECHANICAL ENERGY AVG.	HP
MECHANICAL ENERGY AVG.	KW
UNIT WORKING LENGTH	INCHES
UNIT WORKING LENGTH	CM
TOOL DIAMETER	INCHES
TOOL DIAMETER	MM
TOOL WORKING LENGTH	INCHES
TOOL WORKING LENGTH	MM
85DB(A) LEVEL DISTANCE	FEET
85DB(A) LEVEL DISTANCE	M
CARRIER WEIGHT RANGE	1000 LBS.
CARRIER WEIGHT RANGE	M TON

		ORV2500H
IMPACT ENERGY CLASS	FT-LB	2500
IMPACT ENERGY CLASS	JOULES	3390
OPERATING WEIGHT	LBS	1990
OPERATING WEIGHT	KG	902
OIL FLOW	GPM	25-35
OIL FLOW	LPM	94-132
FREQUENCY	BPM L-Mode	350-550
FREQUENCY	BPM S-Mode	600-900
OPERATING PRESSURE	PSI	1190-2700
OPERATING PRESSURE	BAR	137-186
MECHANICAL ENERGY	HP	35-65
MECHANICAL ENERGY	KW	26-48
MECHANICAL ENERGY AVG.	HP	50
MECHANICAL ENERGY AVG.	KW	37
UNIT WORKING LENGTH	INCHES	89
UNIT WORKING LENGTH	CM	226
TOOL DIAMETER	INCHES	4.1
TOOL DIAMETER	MM	104
TOOL WORKING LENGTH	INCHES	23.4
TOOL WORKING LENGTH	MM	594
85DB(A) LEVEL DISTANCE	FEET	75-105
85DB(A) LEVEL DISTANCE	M	23-32
CARRIER WEIGHT RANGE	1000 LBS.	22-34
CARRIER WEIGHT RANGE	M TON	10-15

		ORV800SH
IMPACT ENERGY CLASS	FT-LB	850
IMPACT ENERGY CLASS	JOULES	1153
OPERATING WEIGHT	LBS	730
OPERATING WEIGHT	KG	331
OIL FLOW	GPM	14-20
OIL FLOW	LPM	53-76
FREQUENCY	BPM L-Mode	380-900
FREQUENCY	BPM S-Mode	N/A
OPERATING PRESSURE	PSI	1706-2347
OPERATING PRESSURE	BAR	118-162
MECHANICAL ENERGY	HP	17-33
MECHANICAL ENERGY	KW	13-25
MECHANICAL ENERGY AVG.	HP	25
MECHANICAL ENERGY AVG.	KW	19
UNIT WORKING LENGTH	INCHES	63
UNIT WORKING LENGTH	CM	160
TOOL DIAMETER	INCHES	2.95
TOOL DIAMETER	MM	75
TOOL WORKING LENGTH	INCHES	16.2
TOOL WORKING LENGTH	MM	411
85DB(A) LEVEL DISTANCE	FEET	35-58
85DB(A) LEVEL DISTANCE	M	11-18
CARRIER WEIGHT RANGE	1000 LBS.	10-18
CARRIER WEIGHT RANGE	M TON	4.5-8

		ORV1100H
IMPACT ENERGY CLASS	FT-LB	1100
IMPACT ENERGY CLASS	JOULES	1492
OPERATING WEIGHT	LBS	1118
OPERATING WEIGHT	KG	507
OIL FLOW	GPM	15-23
OIL FLOW	LPM	56-87
FREQUENCY	BPM L-Mode	400-800
FREQUENCY	BPM S-Mode	600-1100
OPERATING PRESSURE	PSI	1990-2418
OPERATING PRESSURE	BAR	137-167
MECHANICAL ENERGY	HP	14-37
MECHANICAL ENERGY	KW	10-28
MECHANICAL ENERGY AVG.	HP	25.5
MECHANICAL ENERGY AVG.	KW	19
UNIT WORKING LENGTH	INCHES	75
UNIT WORKING LENGTH	CM	190
TOOL DIAMETER	INCHES	3.15
TOOL DIAMETER	MM	80
TOOL WORKING LENGTH	INCHES	19.5
TOOL WORKING LENGTH	MM	496
85DB(A) LEVEL DISTANCE	FEET	57-95
85DB(A) LEVEL DISTANCE	M	17.-29
CARRIER WEIGHT RANGE	1000 LBS.	10-18
CARRIER WEIGHT RANGE	M TON	4.5-8

		ORV1500HX
IMPACT ENERGY CLASS	FT-LB	1500
IMPACT ENERGY CLASS	JOULES	2034
OPERATING WEIGHT	LBS	1667
OPERATING WEIGHT	KG	756
OIL FLOW	GPM	16-26
OIL FLOW	LPM	60-98
FREQUENCY	BPM L-Mode	350-700
FREQUENCY	BPM S-Mode	490-1000
OPERATING PRESSURE	PSI	1990-2418
OPERATING PRESSURE	BAR	137-167
MECHANICAL ENERGY	HP	15-38
MECHANICAL ENERGY	KW	11-28
MECHANICAL ENERGY AVG.	HP	26.5
MECHANICAL ENERGY AVG.	KW	20
UNIT WORKING LENGTH	INCHES	83
UNIT WORKING LENGTH	CM	212
TOOL DIAMETER	INCHES	3.54
TOOL DIAMETER	MM	90
TOOL WORKING LENGTH	INCHES	22.6
TOOL WORKING LENGTH	MM	575
85DB(A) LEVEL DISTANCE	FEET	65-91
85DB(A) LEVEL DISTANCE	M	20-28
CARRIER WEIGHT RANGE	1000 LBS.	13-22
CARRIER WEIGHT RANGE	M TON	6-10

		ORV3000H
IMPACT ENERGY CLASS	FT-LB	3000
IMPACT ENERGY CLASS	JOULES	4068
OPERATING WEIGHT	LBS	2550
OPERATING WEIGHT	KG	1156
OIL FLOW	GPM	32-42
OIL FLOW	LPM	121-159
FREQUENCY	BPM L-Mode	320-550
FREQUENCY	BPM S-Mode	400-700
OPERATING PRESSURE	PSI	1990-2700
OPERATING PRESSURE	BAR	137-186
MECHANICAL ENERGY	HP	45-78
MECHANICAL ENERGY	KW	33-58
MECHANICAL ENERGY AVG.	HP	61.5
MECHANICAL ENERGY AVG.	KW	46
UNIT WORKING LENGTH	INCHES	81
UNIT WORKING LENGTH	CM	206
TOOL DIAMETER	INCHES	4.5
TOOL DIAMETER	MM	114
TOOL WORKING LENGTH	INCHES	24
TOOL WORKING LENGTH	MM	610
85DB(A) LEVEL DISTANCE	FEET	78-109
85DB(A) LEVEL DISTANCE	M	24-33
CARRIER WEIGHT RANGE	1000 LBS.	28-40
CARRIER WEIGHT RANGE	M TON	13-18

		ORV4000H
IMPACT ENERGY CLASS	FT-LB	4000
IMPACT ENERGY CLASS	JOULES	5424
OPERATING WEIGHT	LBS	3646
OPERATING WEIGHT	KG	1654
OIL FLOW	GPM	40-53
OIL FLOW	LPM	151-200
FREQUENCY	BPM L-Mode	320-480
FREQUENCY	BPM S-Mode	400-600
OPERATING PRESSURE	PSI	2275-2700
OPERATING PRESSURE	BAR	157-186
MECHANICAL ENERGY	HP	62-98
MECHANICAL ENERGY	KW	47-73
MECHANICAL ENERGY AVG.	HP	80
MECHANICAL ENERGY AVG.	KW	60
UNIT WORKING LENGTH	INCHES	111
UNIT WORKING LENGTH	CM	282
TOOL DIAMETER	INCHES	5.31
TOOL DIAMETER	MM	135
TOOL WORKING LENGTH	INCHES	28.9
TOOL WORKING LENGTH	MM	734
85DB(A) LEVEL DISTANCE	FEET	83-116
85DB(A) LEVEL DISTANCE	M	25-35
CARRIER WEIGHT RANGE	1000 LBS.	38-54
CARRIER WEIGHT RANGE	M TON	17-25

		ORV5000HX
IMPACT ENERGY CLASS	FT-LB	5000
IMPACT ENERGY CLASS	JOULES	6780
OPERATING WEIGHT	LBS	4400
OPERATING WEIGHT	KG	1995
OIL FLOW	GPM	47-63
OIL FLOW	LPM	178-238
FREQUENCY	BPM L-Mode	270-400
FREQUENCY	BPM S-Mode	330-500
OPERATING PRESSURE	PSI	2275-2700
OPERATING PRESSURE	BAR	157-186
MECHANICAL ENERGY	HP	73-117
MECHANICAL ENERGY	KW	55-87
MECHANICAL ENERGY AVG.	HP	95
MECHANICAL ENERGY AVG.	KW	71
UNIT WORKING LENGTH	INCHES	114
UNIT WORKING LENGTH	CM	290
TOOL DIAMETER	INCHES	5.7
TOOL DIAMETER	MM	145
TOOL WORKING LENGTH	INCHES	28.2
TOOL WORKING LENGTH	MM	716
85DB(A) LEVEL DISTANCE	FEET	98-137
85DB(A) LEVEL DISTANCE	M	30-42
CARRIER WEIGHT RANGE	1000 LBS.	44-66
CARRIER WEIGHT RANGE	M TON	20-30
