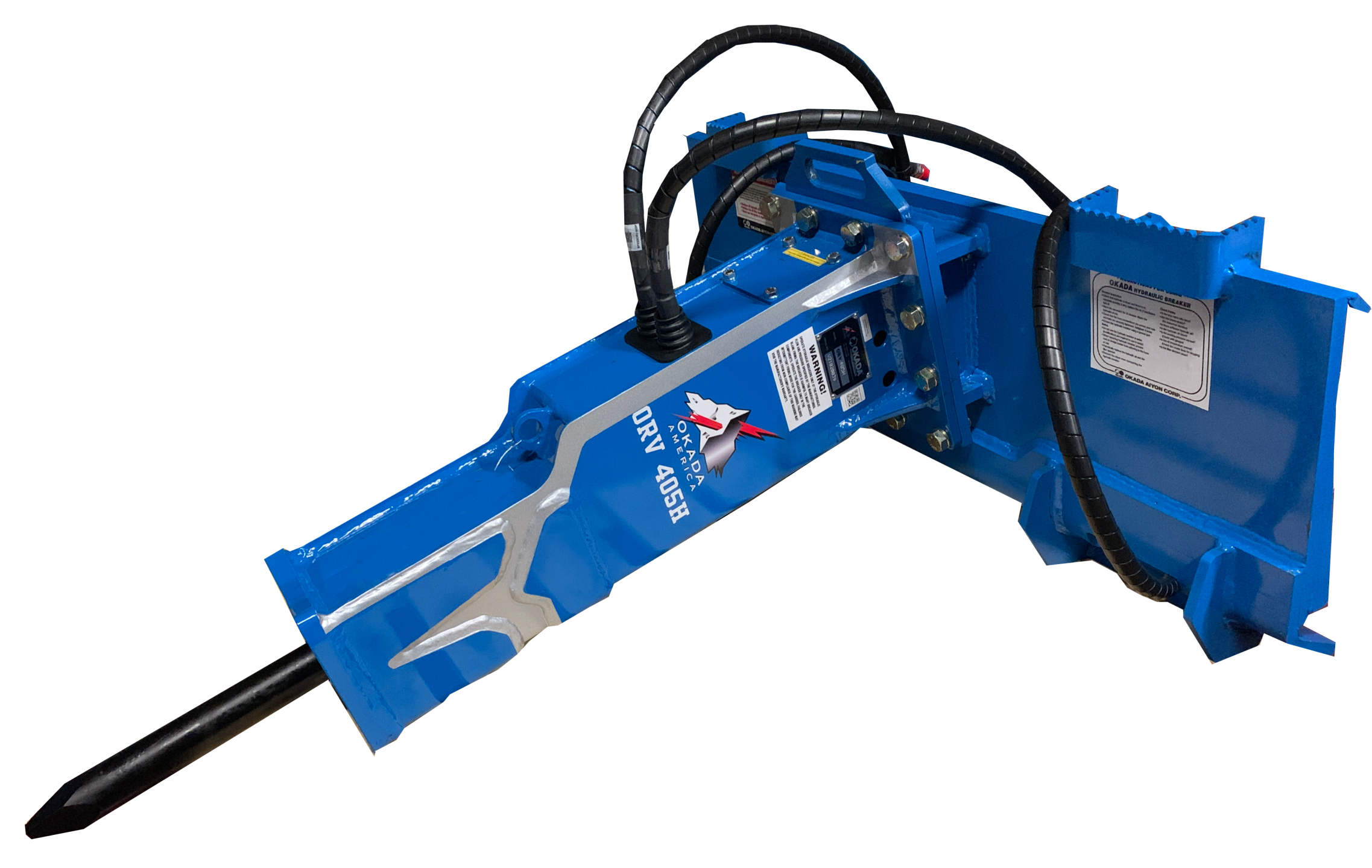

ORV405H

SMALL CLASS ORV HYRRAULIC BREAKER

ORV Series hydraulic breakers are the result of decades of field experience and Okada’s long-standing record of leadership in the industry. Thirteen models of ORV hydraulic breakers provide a broad range  of solutions for your skid steer loaders, compact excavators, tractor loader backhoes and excavator

DOWNLOAD BROCHUREDealer Logincontact sales
IMPACT ENERGY CLASSFT-LB
JOULES
OPERATING WEIGHTLBS
KG
OIL FLOWGPM
LPM
FREQUENCYBPM L-Mode
BPM S-Mode
OPERATING PRESSUREPSI
BAR
MECHANICAL ENERGYHP
KW
MECHANICAL ENERGY AVG.HP
KW
UNIT WORKING LENGTHINCHES
CM
TOOL DIAMETERINCHES
MM
TOOL WORKING LENGTHINCHES
MM
85DB(A) LEVEL DISTANCEFEET
M
CARRIER WEIGHT RANGE1000 LBS.
M TON
ORV405H
IMPACT ENERGY CLASSFT-LB375
JOULES509
OPERATING WEIGHTLBS413
KG187
OIL FLOWGPM8-18
LPM30-70
FREQUENCYBPM L-Mode600-1500
BPM S-ModeN/A
OPERATING PRESSUREPSI1280-1706
BAR88-118
MECHANICAL ENERGYHP4.6-19
KW3-14
MECHANICAL ENERGY AVG.HP11.8
KW9
UNIT WORKING LENGTHINCHES55
CM139
TOOL DIAMETERINCHES2.24
MM57
TOOL WORKING LENGTHINCHES14.1
MM357
85DB(A) LEVEL DISTANCEFEET25-36
M7.6-11
CARRIER WEIGHT RANGE1000 LBS.3.3-8.8
M TON1.5-4
ORV250LT
IMPACT ENERGY CLASSFT-LB225
JOULES305
OPERATING WEIGHTLBS350
KG159
OIL FLOWGPM4-9
LPM15-34
FREQUENCYBPM L-Mode550-1000
BPM S-ModeN/A
OPERATING PRESSUREPSI1280-1706
BAR88-117
MECHANICAL ENERGYHP3.6-11
KW2.7-8
MECHANICAL ENERGY AVG.HP7.3
KW5.4
UNIT WORKING LENGTHINCHES48
CM122
TOOL DIAMETERINCHES1.77
MM45
TOOL WORKING LENGTHINCHES11.9
MM302
85DB(A) LEVEL DISTANCEFEET-
M-
CARRIER WEIGHT RANGE1000 LBS.1.6-5
M TON0.7-2.3
ORV250H
IMPACT ENERGY CLASSFT-LB225
JOULES305
OPERATING WEIGHTLBS321
KG146
OIL FLOWGPM5-9
LPM19-34
FREQUENCYBPM L-Mode550-1000
BPM S-ModeN/A
OPERATING PRESSUREPSI1280-1706
BAR88-117
MECHANICAL ENERGYHP4.5-11
KW3.3-8
MECHANICAL ENERGY AVG.HP7.8
KW6
UNIT WORKING LENGTHINCHES48
CM122
TOOL DIAMETERINCHES1.77
MM45
TOOL WORKING LENGTHINCHES11.9
MM302
85DB(A) LEVEL DISTANCEFEET8-15
M2.4-.5
CARRIER WEIGHT RANGE1000 LBS.2.2-5
M TON1-2.3
ORV550H
IMPACT ENERGY CLASSFT-LB550
JOULES746
OPERATING WEIGHTLBS575
KG261
OIL FLOWGPM11-18
LPM42-68
FREQUENCYBPM L-Mode380-1000
BPM S-ModeN/A
OPERATING PRESSUREPSI1564-2347
BAR108-162
MECHANICAL ENERGYHP12-30
KW9-22
MECHANICAL ENERGY AVG.HP21
KW16
UNIT WORKING LENGTHINCHES62
CM157
TOOL DIAMETERINCHES2.75
MM70
TOOL WORKING LENGTHINCHES15.9
MM404
85DB(A) LEVEL DISTANCEFEET30-50
M9.1-15.2
CARRIER WEIGHT RANGE1000 LBS.6.6-14.2
M TON3.0-6.4
ORV800SH
IMPACT ENERGY CLASSFT-LB850
JOULES1153
OPERATING WEIGHTLBS730
KG331
OIL FLOWGPM14-20
LPM53-76
FREQUENCYBPM L-Mode380-900
BPM S-ModeN/A
OPERATING PRESSUREPSI1706-2347
BAR118-162
MECHANICAL ENERGYHP17-33
KW13-25
MECHANICAL ENERGY AVG.HP25
KW19
UNIT WORKING LENGTHINCHES63
CM160
TOOL DIAMETERINCHES2.95
MM75
TOOL WORKING LENGTHINCHES16.2
MM411
85DB(A) LEVEL DISTANCEFEET35-58
M11-18
CARRIER WEIGHT RANGE1000 LBS.10-18
M TON4.5-8
ORV1100H
IMPACT ENERGY CLASSFT-LB1100
JOULES1492
OPERATING WEIGHTLBS1118
KG507
OIL FLOWGPM15-23
LPM56-87
FREQUENCYBPM L-Mode400-800
BPM S-Mode600-1100
OPERATING PRESSUREPSI1990-2418
BAR137-167
MECHANICAL ENERGYHP14-37
KW10-28
MECHANICAL ENERGY AVG.HP25.5
KW19
UNIT WORKING LENGTHINCHES75
CM190
TOOL DIAMETERINCHES3.15
MM80
TOOL WORKING LENGTHINCHES19.5
MM496
85DB(A) LEVEL DISTANCEFEET57-95
M17.-29
CARRIER WEIGHT RANGE1000 LBS.10-18
M TON4.5-8
ORV1500H
IMPACT ENERGY CLASSFT-LB1500
JOULES2034
OPERATING WEIGHTLBS1667
KG756
OIL FLOWGPM16-26
LPM60-98
FREQUENCYBPM L-Mode350-700
BPM S-Mode490-1000
OPERATING PRESSUREPSI1990-2418
BAR137-167
MECHANICAL ENERGYHP15-38
KW11-28
MECHANICAL ENERGY AVG.HP26.5
KW20
UNIT WORKING LENGTHINCHES83
CM212
TOOL DIAMETERINCHES3.54
MM90
TOOL WORKING LENGTHINCHES22.6
MM575
85DB(A) LEVEL DISTANCEFEET65-91
M20-28
CARRIER WEIGHT RANGE1000 LBS.13-22
M TON6-10

For use with Skid Steer Loaders, Mini & Small Excavators and Tractor Loader Backhoes.

Auto-Lube

A central grease port with internal grease passage readily adapts the hammer to most auto lube systems.

Main Valve

The internal control valve system equates to faster speeds and higher impact energy while still allowing the breaker to operate at cooler temperatures.

Accumulator

The large capacity accumulator reduces shock load in the system.

Stroke Adjuster

Variable speed control in the breaker maximizes productivity.

Original Holding System

The powercell is securely held inside the bracket with the head damper, reducing recoil.

Larger N2 Gas Chamber

Ensures high impact power.

Long Stroke Piston

Increases impact power, and reduces vibration and recoil.

Dual Chisel Retaining Pin

Extends Service Life.

Durable breaker Bracket

Includes a heavy duty bottom plate that protects the powercell and reduces noise and vibration.
