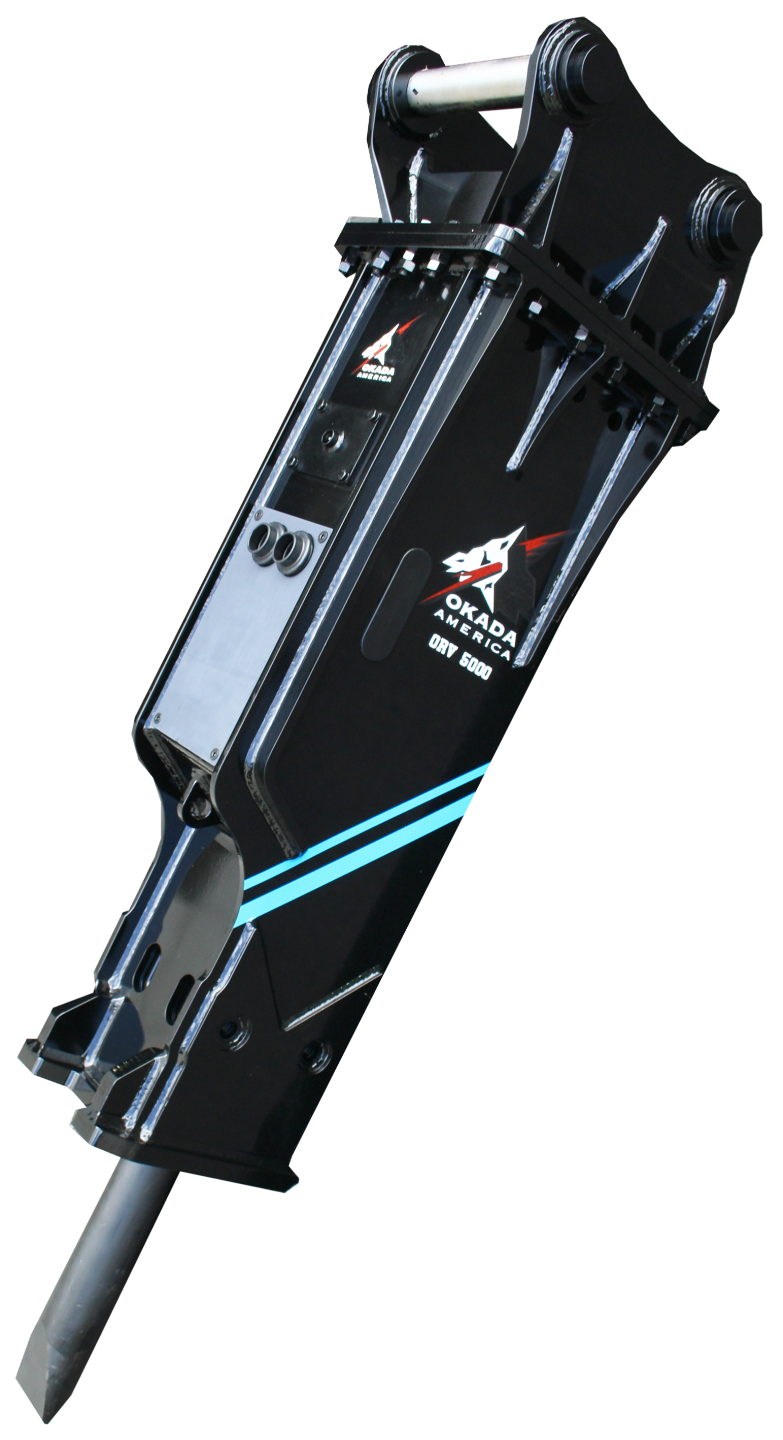

ORV5000H

Images

ORV5000H

MID CLASS ORV HYRRAULIC BREAKER

DOWNLOAD BROCHURE Dealer Login contact sales

Specifications


IMPACT ENERGY CLASS	FT-LB
IMPACT ENERGY CLASS	JOULES
OPERATING WEIGHT	LBS
OPERATING WEIGHT	KG
OIL FLOW	GPM
OIL FLOW	LPM
FREQUENCY	BPM L-Mode
FREQUENCY	BPM S-Mode
OPERATING PRESSURE	PSI
OPERATING PRESSURE	BAR
MECHANICAL ENERGY	HP
MECHANICAL ENERGY	KW
MECHANICAL ENERGY AVG.	HP
MECHANICAL ENERGY AVG.	KW
UNIT WORKING LENGTH	INCHES
UNIT WORKING LENGTH	CM
TOOL DIAMETER	INCHES
TOOL DIAMETER	MM
TOOL WORKING LENGTH	INCHES
TOOL WORKING LENGTH	MM
85DB(A) LEVEL DISTANCE	FEET
85DB(A) LEVEL DISTANCE	M
CARRIER WEIGHT RANGE	1000 LBS.
CARRIER WEIGHT RANGE	M TON

		ORV5000H
IMPACT ENERGY CLASS	FT-LB	5000
IMPACT ENERGY CLASS	JOULES	6780
OPERATING WEIGHT	LBS	4400
OPERATING WEIGHT	KG	1995
OIL FLOW	GPM	47-63
OIL FLOW	LPM	178-238
FREQUENCY	BPM L-Mode	270-400
FREQUENCY	BPM S-Mode	330-500
OPERATING PRESSURE	PSI	2320-2600
OPERATING PRESSURE	BAR	157-180
MECHANICAL ENERGY	HP	73-117
MECHANICAL ENERGY	KW	55-87
MECHANICAL ENERGY AVG.	HP	95
MECHANICAL ENERGY AVG.	KW	71
UNIT WORKING LENGTH	INCHES	114
UNIT WORKING LENGTH	CM	290
TOOL DIAMETER	INCHES	5.7
TOOL DIAMETER	MM	145
TOOL WORKING LENGTH	INCHES	28.2
TOOL WORKING LENGTH	MM	716
85DB(A) LEVEL DISTANCE	FEET	98-137
85DB(A) LEVEL DISTANCE	M	30-42
CARRIER WEIGHT RANGE	1000 LBS.	44-66
CARRIER WEIGHT RANGE	M TON	20-30

		ORV2500H
IMPACT ENERGY CLASS	FT-LB	2500
IMPACT ENERGY CLASS	JOULES	3390
OPERATING WEIGHT	LBS	1990
OPERATING WEIGHT	KG	902
OIL FLOW	GPM	25-35
OIL FLOW	LPM	94-132
FREQUENCY	BPM L-Mode	350-550
FREQUENCY	BPM S-Mode	600-900
OPERATING PRESSURE	PSI	2030-2600
OPERATING PRESSURE	BAR	140-180
MECHANICAL ENERGY	HP	35-65
MECHANICAL ENERGY	KW	26-48
MECHANICAL ENERGY AVG.	HP	50
MECHANICAL ENERGY AVG.	KW	37
UNIT WORKING LENGTH	INCHES	89
UNIT WORKING LENGTH	CM	226
TOOL DIAMETER	INCHES	4.1
TOOL DIAMETER	MM	104
TOOL WORKING LENGTH	INCHES	23.4
TOOL WORKING LENGTH	MM	594
85DB(A) LEVEL DISTANCE	FEET	75-105
85DB(A) LEVEL DISTANCE	M	23-32
CARRIER WEIGHT RANGE	1000 LBS.	22-34
CARRIER WEIGHT RANGE	M TON	10-15

		ORV3000H
IMPACT ENERGY CLASS	FT-LB	3000
IMPACT ENERGY CLASS	JOULES	4068
OPERATING WEIGHT	LBS	2550
OPERATING WEIGHT	KG	1156
OIL FLOW	GPM	32-42
OIL FLOW	LPM	121-159
FREQUENCY	BPM L-Mode	320-550
FREQUENCY	BPM S-Mode	400-700
OPERATING PRESSURE	PSI	2030-2600
OPERATING PRESSURE	BAR	140-180
MECHANICAL ENERGY	HP	45-78
MECHANICAL ENERGY	KW	33-58
MECHANICAL ENERGY AVG.	HP	61.5
MECHANICAL ENERGY AVG.	KW	46
UNIT WORKING LENGTH	INCHES	81
UNIT WORKING LENGTH	CM	206
TOOL DIAMETER	INCHES	4.5
TOOL DIAMETER	MM	114
TOOL WORKING LENGTH	INCHES	24
TOOL WORKING LENGTH	MM	610
85DB(A) LEVEL DISTANCE	FEET	78-109
85DB(A) LEVEL DISTANCE	M	24-33
CARRIER WEIGHT RANGE	1000 LBS.	28-40
CARRIER WEIGHT RANGE	M TON	13-18

		ORV4000H
IMPACT ENERGY CLASS	FT-LB	4000
IMPACT ENERGY CLASS	JOULES	5424
OPERATING WEIGHT	LBS	3500
OPERATING WEIGHT	KG	1587
OIL FLOW	GPM	32-42
OIL FLOW	LPM	121-159
FREQUENCY	BPM L-Mode	320-480
FREQUENCY	BPM S-Mode	400-600
OPERATING PRESSURE	PSI	2275-2600
OPERATING PRESSURE	BAR	157-180
MECHANICAL ENERGY	HP	62-98
MECHANICAL ENERGY	KW	47-73
MECHANICAL ENERGY AVG.	HP	80
MECHANICAL ENERGY AVG.	KW	60
UNIT WORKING LENGTH	INCHES	103
UNIT WORKING LENGTH	CM	262
TOOL DIAMETER	INCHES	5.3
TOOL DIAMETER	MM	135
TOOL WORKING LENGTH	INCHES	28.9
TOOL WORKING LENGTH	MM	734
85DB(A) LEVEL DISTANCE	FEET	83-116
85DB(A) LEVEL DISTANCE	M	25-35
CARRIER WEIGHT RANGE	1000 LBS.	38-54
CARRIER WEIGHT RANGE	M TON	17-25

		ORV7500H
IMPACT ENERGY CLASS	FT-LB	7500
IMPACT ENERGY CLASS	JOULES	10170
OPERATING WEIGHT	LBS	5950
OPERATING WEIGHT	KG	2698
OIL FLOW	GPM	63-72
OIL FLOW	LPM	238-272
FREQUENCY	BPM L-Mode	230-400
FREQUENCY	BPM S-Mode	270-470
OPERATING PRESSURE	PSI	2320-2600
OPERATING PRESSURE	BAR	157-180
MECHANICAL ENERGY	HP	98-133
MECHANICAL ENERGY	KW	73.4-99.5
MECHANICAL ENERGY AVG.	HP	115.5
MECHANICAL ENERGY AVG.	KW	86
UNIT WORKING LENGTH	INCHES	124
UNIT WORKING LENGTH	CM	315
TOOL DIAMETER	INCHES	6.1
TOOL DIAMETER	MM	155
TOOL WORKING LENGTH	INCHES	30.2
TOOL WORKING LENGTH	MM	767
85DB(A) LEVEL DISTANCE	FEET	119-167
85DB(A) LEVEL DISTANCE	M	36-51
CARRIER WEIGHT RANGE	1000 LBS.	60-92
CARRIER WEIGHT RANGE	M TON	27-42

		ORV10000H
IMPACT ENERGY CLASS	FT-LB	10000
IMPACT ENERGY CLASS	JOULES	13560
OPERATING WEIGHT	LBS	8400
OPERATING WEIGHT	KG	3810
OIL FLOW	GPM	64-85
OIL FLOW	LPM	242-322
FREQUENCY	BPM L-Mode	230-330
FREQUENCY	BPM S-Mode	270-500
OPERATING PRESSURE	PSI	2170-2600
OPERATING PRESSURE	BAR	147-180
MECHANICAL ENERGY	HP	94-158
MECHANICAL ENERGY	KW	70-117
MECHANICAL ENERGY AVG.	HP	126
MECHANICAL ENERGY AVG.	KW	94
UNIT WORKING LENGTH	INCHES	141
UNIT WORKING LENGTH	CM	358
TOOL DIAMETER	INCHES	6.7
TOOL DIAMETER	MM	170
TOOL WORKING LENGTH	INCHES	34.9
TOOL WORKING LENGTH		-
85DB(A) LEVEL DISTANCE	FEET	120-162
85DB(A) LEVEL DISTANCE	M	36-49
CARRIER WEIGHT RANGE	1000 LBS.	76-132
CARRIER WEIGHT RANGE	M TON	35-60

		ORV12000H
IMPACT ENERGY CLASS	FT-LB	12500
IMPACT ENERGY CLASS	JOULES	16950
OPERATING WEIGHT	LBS	9921
OPERATING WEIGHT	KG	4499
OIL FLOW	GPM	69-95
OIL FLOW	LPM	261-359
FREQUENCY	BPM L-Mode	270-380
FREQUENCY	BPM S-Mode	380-530
OPERATING PRESSURE	PSI	2130-2600
OPERATING PRESSURE	BAR	147-180
MECHANICAL ENERGY	HP	101-176
MECHANICAL ENERGY	KW	75-131
MECHANICAL ENERGY AVG.	HP	138.5
MECHANICAL ENERGY AVG.	KW	103
UNIT WORKING LENGTH	INCHES	142
UNIT WORKING LENGTH	CM	361
TOOL DIAMETER	INCHES	7.1
TOOL DIAMETER	MM	180
TOOL WORKING LENGTH	INCHES	32
TOOL WORKING LENGTH	MM	813
85DB(A) LEVEL DISTANCE	FEET	131-177
85DB(A) LEVEL DISTANCE	M	40-54
CARRIER WEIGHT RANGE	1000 LBS.	99-176
CARRIER WEIGHT RANGE	M TON	45-80
