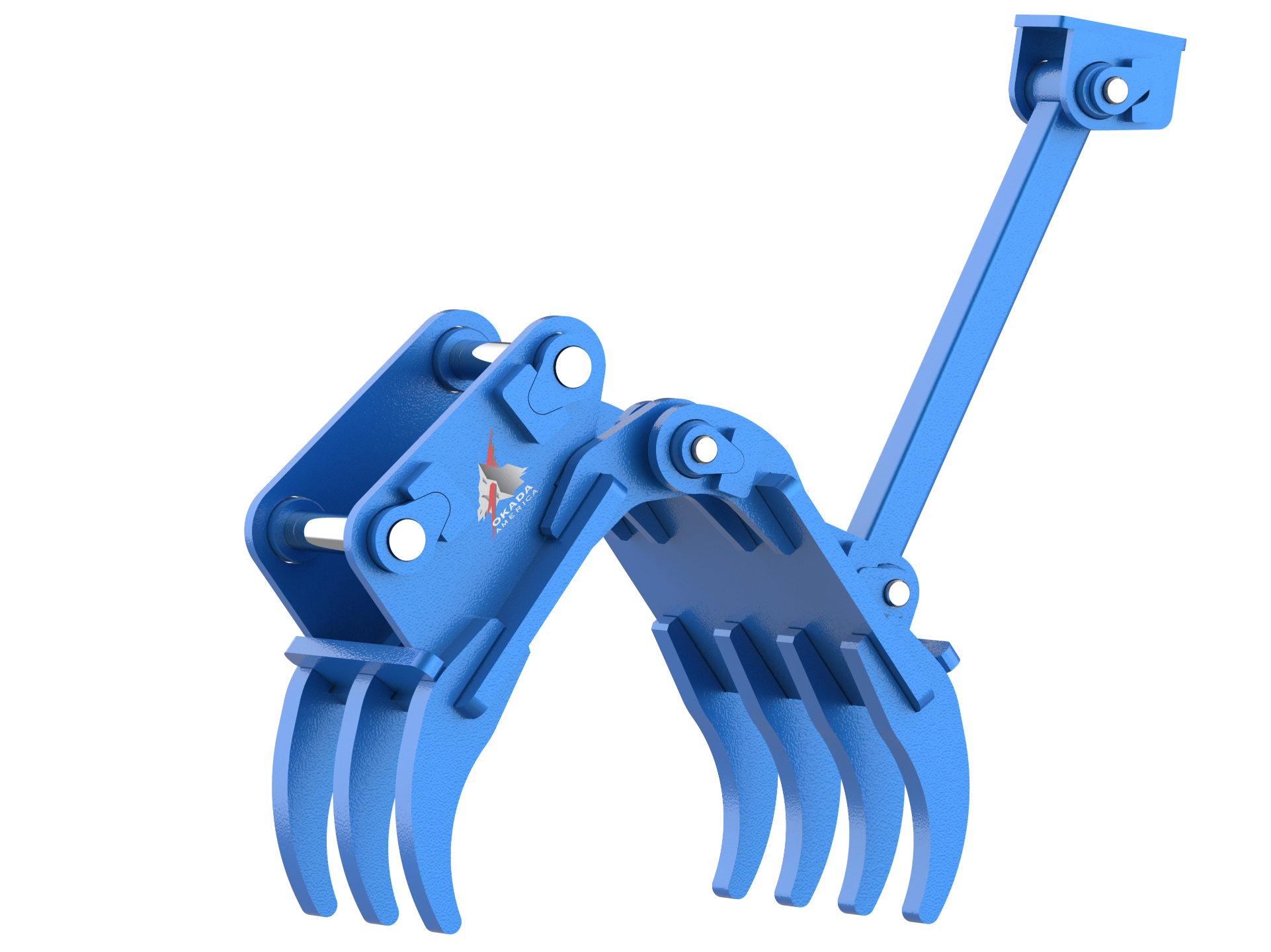

OMG110-LT

For 9-13 m ton carrier

The grapple attaches to excavators ranging from 9-13 tonne carrier weight category. Grapple ranges overlap in relation to duty cycle, weight, and the excavator they mount on. Example, Our OMG110-LT is extreme heavy-duty for 9 tonne excavators but standard–duty for 13 tonne excavators.

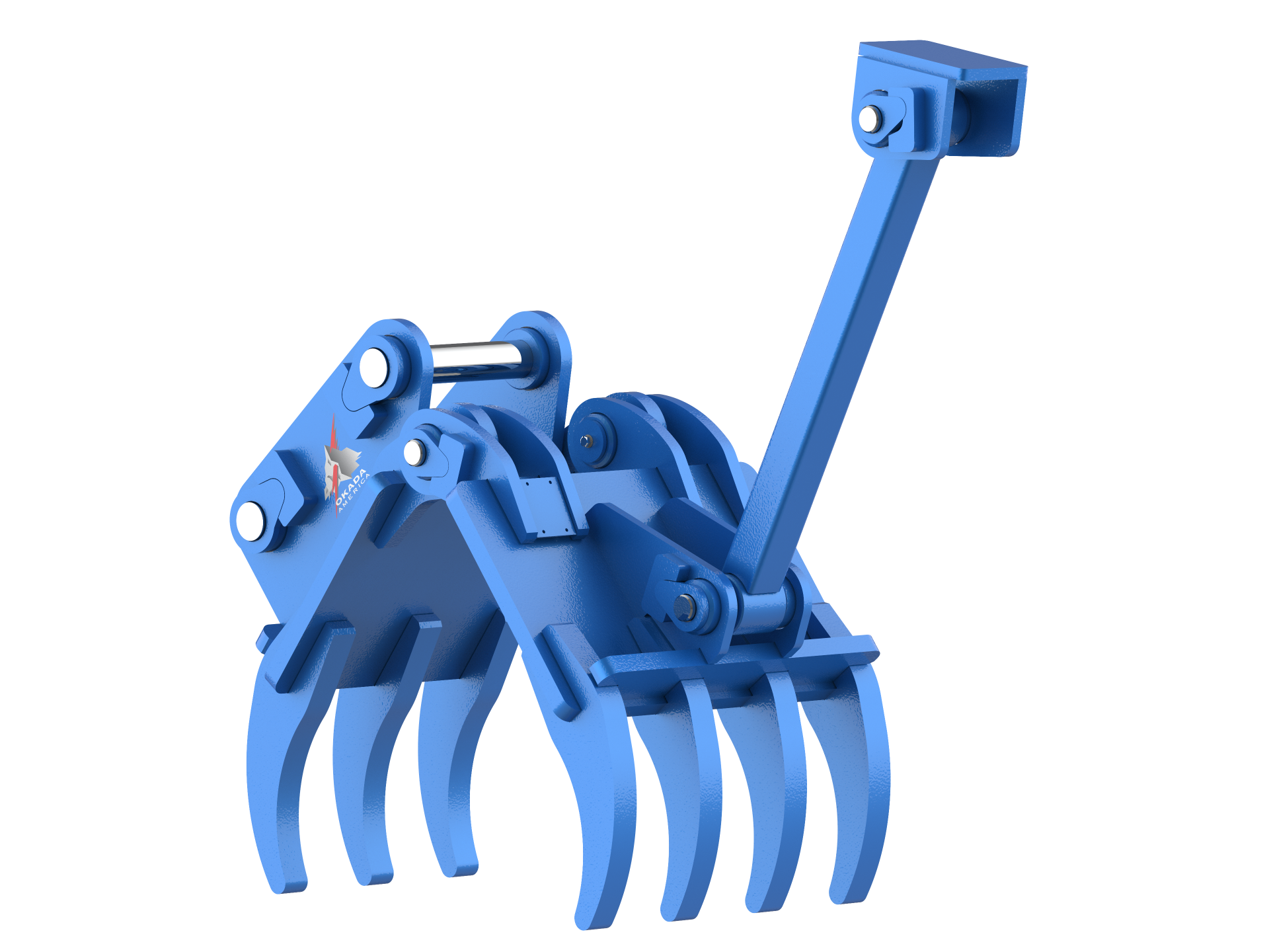

The grapple has a 4 and 3 tine jaw arrangement, this design is for efficient gripping and handling of materials , allowing dust and fines to pass through without larger pieces getting caught or wedged.
This attachment is an ideal tool for professionals working within the materials handling, forestry and recycling industries.
Our grapple is commonly used in activities such as lifting, loading, sorting, grabbing, positioning, selecting and compacting.
Our grapple package consists of hangers specifically designed to suit your excavator pick-up, a stay-arm and weld-on bracket.

DOWNLOAD BROCHUREDealer Logincontact sales
OPERATING WEIGHTLBS
KG
MAX JAW OPENINGINCHES
MM
CARRIER WEIGHT RANGE1000 LBS.
M TON
FRONT JAW WIDTHINCHES
MM
REAR JAW WIDTHINCHES
MM
TINE JAW ARRANGEMENT-
-
OMG110-LT
OPERATING WEIGHTLBS1102
KG500
MAX JAW OPENINGINCHES62.2
MM1580
CARRIER WEIGHT RANGE1000 LBS.20-28
M TON9-13
FRONT JAW WIDTHINCHES19.7
MM500
REAR JAW WIDTHINCHES27.6
MM700
TINE JAW ARRANGEMENT3 & 4
-
OMG20-LT
OPERATING WEIGHTLBS143
KG65
MAX JAW OPENINGINCHES31.5
MM800
CARRIER WEIGHT RANGE1000 LBS.2.2-6.6
M TON1-3
FRONT JAW WIDTHINCHES9.8
MM250
REAR JAW WIDTHINCHES14.2
MM360
TINE JAW ARRANGEMENT3 & 4
-
OMG45-LT
OPERATING WEIGHTLBS276
KG125
MAX JAW OPENINGINCHES39.4
MM1000
CARRIER WEIGHT RANGE1000 LBS.6.6-13
M TON3-6
FRONT JAW WIDTHINCHES12.2
MM310
REAR JAW WIDTHINCHES17.3
MM440
TINE JAW ARRANGEMENT3 & 4
-
OMG75-LT
OPERATING WEIGHTLBS496
KG225
MAX JAW OPENINGINCHES47.2
MM1200
CARRIER WEIGHT RANGE1000 LBS.13-20
M TON6-9
FRONT JAW WIDTHINCHES13.8
MM350
REAR JAW WIDTHINCHES19.7
MM500
TINE JAW ARRANGEMENT3 & 4
-

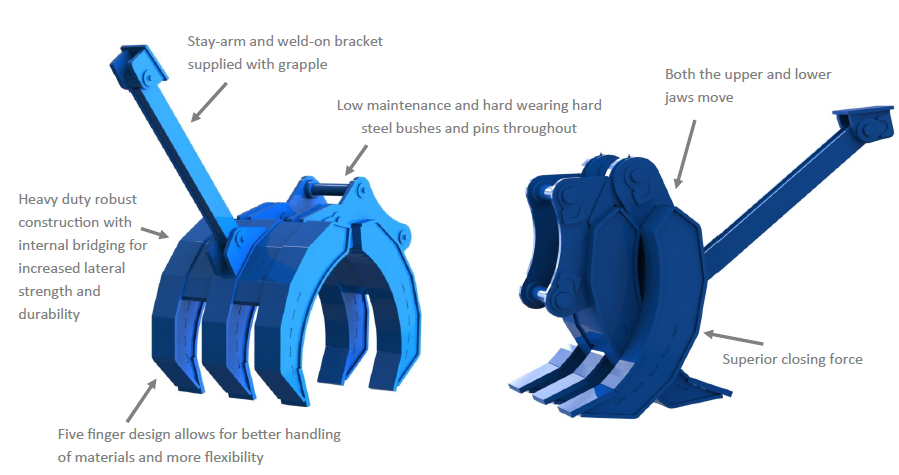

OMG120-HD
OPERATING WEIGHTLBS1422
KG645
MAX JAW OPENINGINCHES74
MM1880
CARRIER WEIGHT RANGE1000 LBS.22-31
M TON10-14
FRONT JAW WIDTHINCHES20.9
MM530
REAR JAW WIDTHINCHES35.0
MM890
TINE JAW ARRANGEMENT2 & 3
-
OMG130-LT
OPERATING WEIGHTLBS1653
KG750
MAX JAW OPENINGINCHES67.3
MM1710
CARRIER WEIGHT RANGE1000 LBS.25-34
M TON11-15
FRONT JAW WIDTHINCHES22.4
MM570
REAR JAW WIDTHINCHES32.5
MM825
TINE JAW ARRANGEMENT3 & 4
-
OMG185-HD
OPERATING WEIGHTLBS2535
KG1150
MAX JAW OPENINGINCHES84.6
MM2150
CARRIER WEIGHT RANGE1000 LBS.34-48
M TON15-22
FRONT JAW WIDTHINCHES25.6
MM650
REAR JAW WIDTHINCHES43.3
MM1100
TINE JAW ARRANGEMENT2 & 3
-

Our Mechanical Grapple is the ideal excavator attachment for land clearance, skip sorting and general forestry work. It is the premier grapple of choice in the demolition and forestry industries due to its robust design and ease of use. It is also well suited for the secondary processing of various materials by grabbing and placing, sorting, raking, loading and unloading loose materials including wood, steel, brick, stone and large rocks.
This grapple will attach to a quick coupler or direct mount onto your excavator. The grapple requires an anchoring bracket to be welded onto the under side of the dipper of the excavator.
The functionality of the grapple utilises the crowding action of the bucket hydraulic cylinder on your excavator. The hydraulic motion in unison with the anchor point on the dipper articulates both jaws in an even and controlled manner. This design is a key feature increasing functionality and ease of use.
Our grapple is 100% mechanical, no hydraulics are required.

• The grapple is manufactured from high grade material, increasing strength and reducing overall weight.
• Hardox wear parts where required.
• Low maintenance oil impregnated (Self-Lubricating) bushes inserted into all pivot points, (Nylon 6 L F X grade).
• High grade hardened pins on all pivot points.
