OMG-50C-2

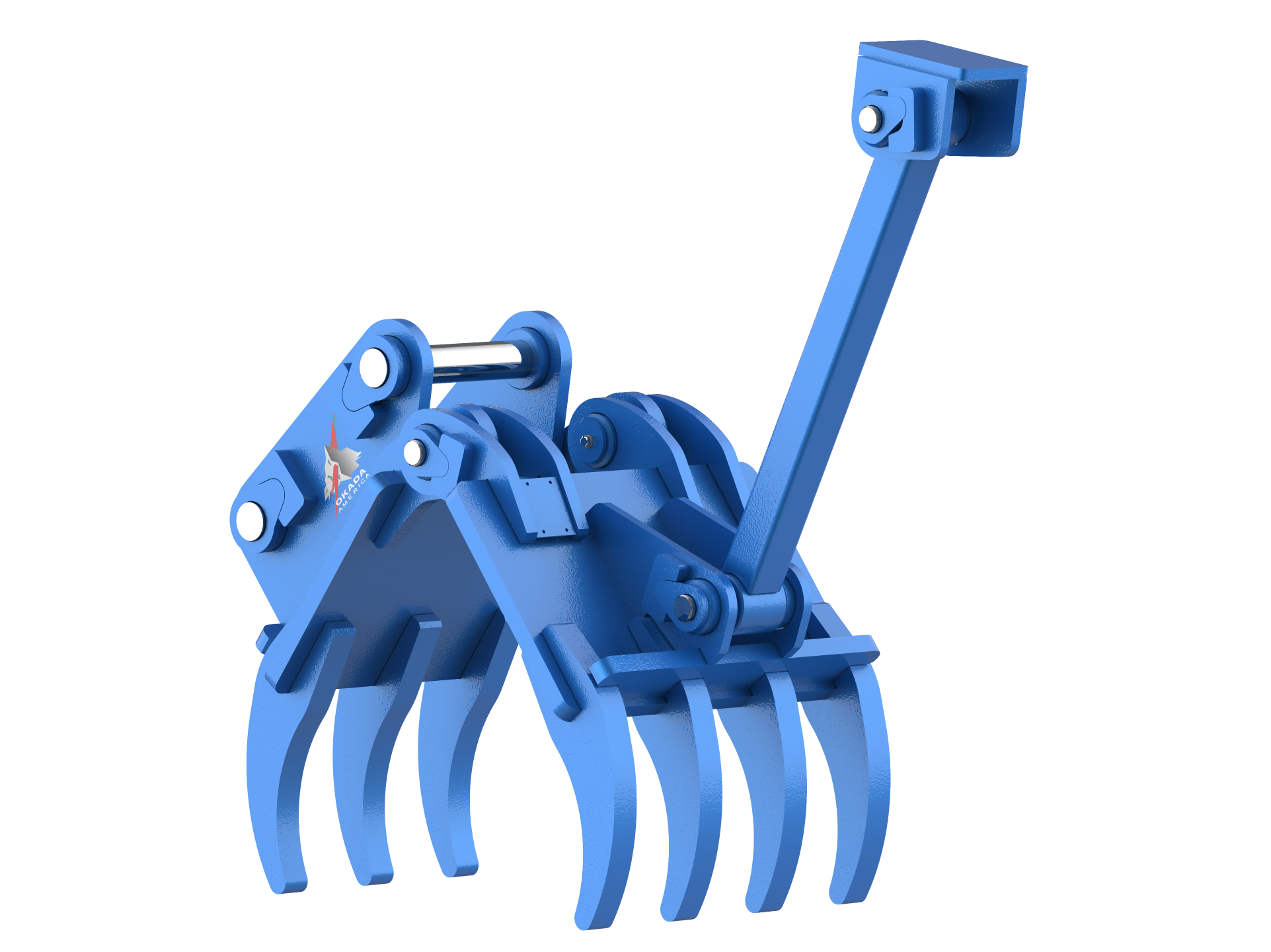

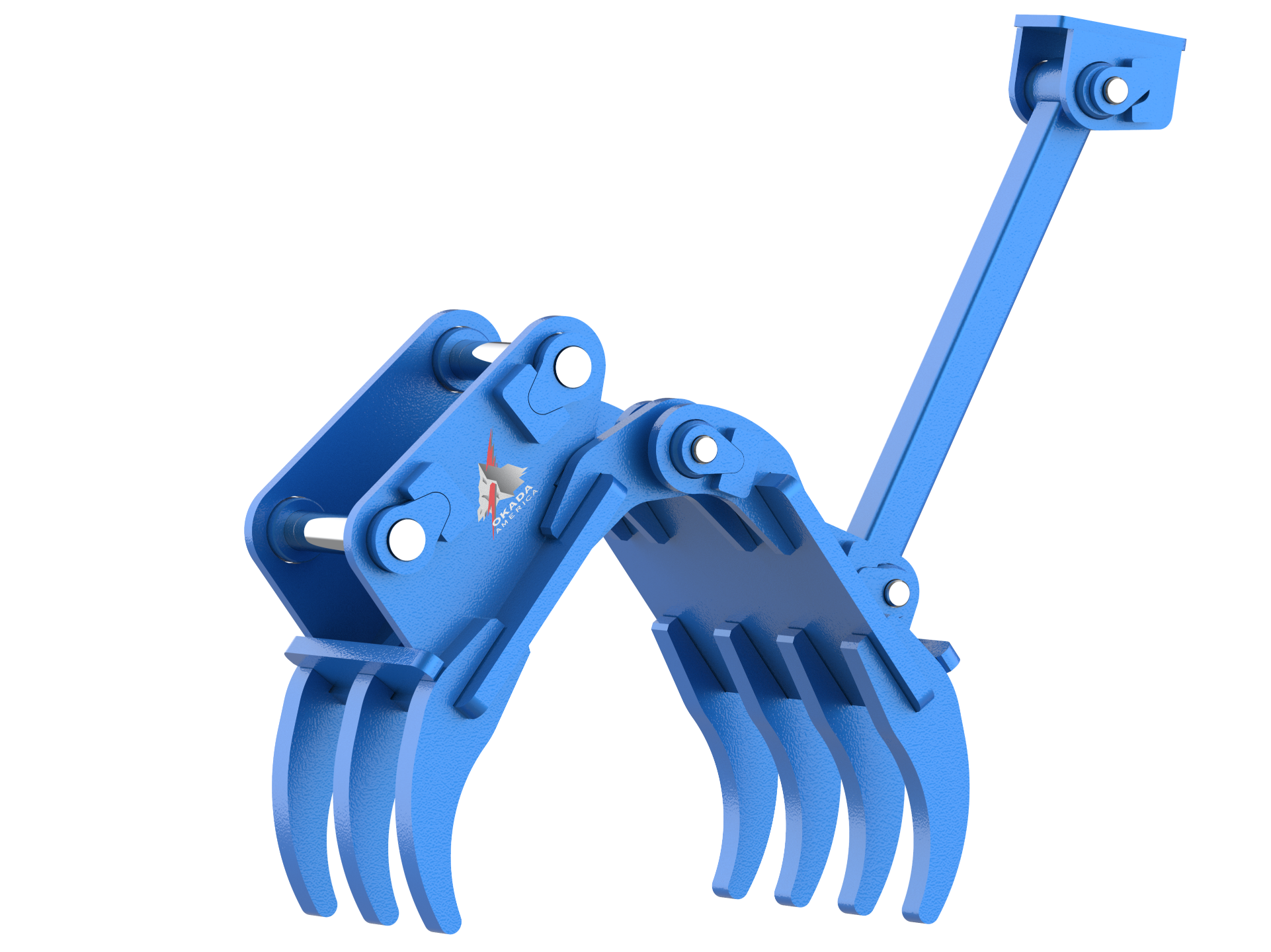

NON-ROTATING MECHANICAL GRAPPLE

OMG Demolition and Material Handling Grapple Designed to excel in severe, heavy-duty demolition and material/waste handling applications.

The fully versatile OMG Demolition and Material Handling Grapple provides performance, production and profits in a wide-range of applications and operations:

  • Scrap yards (outperform magnets 3 to 1)
  • Recycling facilities (easily sort and separate material and quickly load crushers or shredders)
  • Demolition (residential, commercial and industrial demolition is easier and safer)
  • Land clearing (tree stumps can be extracted quickly)
  • Reconstruction (no need for cable-and-sling as large, bulky objects are moved easily)
  • Rock handling (precisely pick and place rip-rap and load shot rock without damaging your haul truck)
    Whether your job calls for demolition, scrap handling, rock handling, log and pipe handling or land clearing, the MG Demolition and Material Handling Grapple has what it takes to get your job done.
DOWNLOAD BROCHUREDealer Logincontact sales
OPERATING WEIGHTLBS
KG
MAX CLAW OPENINGINCHES
MM
CLAW CLOSEDINCHES
MM
LOWER CENTER TINE WIDTHINCHES
MM
LOWER CLAW WIDTHINCHES
MM
HEIGHTINCHES
MM
UPPER CLAW WIDTHINCHES
MM
UPPER CLAW TINE WIDTHINCHES
MM
LOWER CLAW OUTER TINE WIDTHINCHES
MM
CARRIER WEIGHT RANGE1000 LBS.
TON
OMG-50C-2
OPERATING WEIGHTLBS3600
KG-
MAX CLAW OPENINGINCHES94
MM-
CLAW CLOSEDINCHES16
MM-
LOWER CENTER TINE WIDTHINCHES8.25
MM-
LOWER CLAW WIDTHINCHES51
MM-
HEIGHTINCHES54
MM-
UPPER CLAW WIDTHINCHES32
MM-
UPPER CLAW TINE WIDTHINCHES9.5
MM-
LOWER CLAW OUTER TINE WIDTHINCHES8.25
MM-
CARRIER WEIGHT RANGE1000 LBS.46-65
TON-
OMG-30C-2
OPERATING WEIGHTLBS2000
KG-
MAX CLAW OPENINGINCHES80
MM-
CLAW CLOSEDINCHES12
MM-
LOWER CENTER TINE WIDTHINCHES7.5
MM-
LOWER CLAW WIDTHINCHES44
MM-
HEIGHTINCHES48
MM-
UPPER CLAW WIDTHINCHES26
MM-
UPPER CLAW TINE WIDTHINCHES7.5
MM-
LOWER CLAW OUTER TINE WIDTHINCHES7.5
MM-
CARRIER WEIGHT RANGE1000 LBS.4-14
TON-
OPERATING WEIGHT-
-
MAX CLAW OPENING-
-
CLAW CLOSED-
-
LOWER CENTER TINE WIDTH-
-
LOWER CLAW WIDTH-
-
HEIGHT-
-
UPPER CLAW WIDTH-
-
UPPER CLAW TINE WIDTH-
-
LOWER CLAW OUTER TINE WIDTH-
-
CARRIER WEIGHT RANGE-
-
OMG-70C-2
OPERATING WEIGHTLBS67000
KG-
MAX CLAW OPENINGINCHES116
MM-
CLAW CLOSEDINCHES20
MM-
LOWER CENTER TINE WIDTHINCHES10
MM-
LOWER CLAW WIDTHINCHES56
MM-
HEIGHTINCHES56
MM-
UPPER CLAW WIDTHINCHES34
MM-
UPPER CLAW TINE WIDTHINCHES10
MM-
LOWER CLAW OUTER TINE WIDTHINCHES10
MM-
CARRIER WEIGHT RANGE1000 LBS.65-88
TON-

The OMG grapple has earned its reputation with by performing well in tuff applications.The OMG Demolition and Material Handling Grapple continues that tradition with a design strength that is unparalleled in the industry as it can withstand the full breakout force of the excavator on a single tine.The OMG series is offered in five different sizes for excavators ranging from 25,000 to 110,000 pounds. And, they provide flexibility in mounting as the Demolition and Material Handling Grapple can be mounted directly on the bucket pins (pin-on) or mounted using a pin-grabbing coupler.

Key features include:

  • Heavy-duty AR500 material used in the tips and AR400 shells made of high tensile, high alloy, abrasion-resistant material in high wear areas
  • Reinforced heavy-duty box tine design for maximum strength
  • Large hardended pivot sleeves and bronze bushings
  • Adjustable stiff link
  • Wider curved bucket design produces larger volume of material per load
  • Full one-year 2,0000 hour warranty (including finger tips)
