TS-S660C

For 30-50 m ton carrier

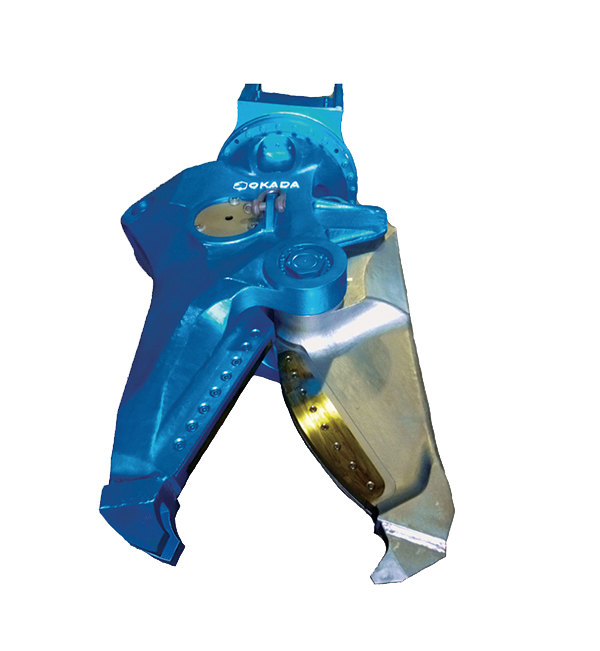

TS-S multi crusher/shear process both reinforced concrete and steel structure.

DOWNLOAD BROCHUREDealer Logincontact sales
OPERATING WEIGHTLBS
KG
OPERATING PRESSUREPSI
BAR
OVERALL LENGTHINCHES
MM
OVERALL WIDTHINCHES
MM
OIL FLOWGPM
LPM
MAX JAW OPENINGINCHES
MM
MAX BLADE OPENINGINCHES
MM
CUTTER BLADE LENGTHINCHES
MM
CRUSHING FORCE AT CENTER OF JAWUS Tons
kN
CARRIER WEIGHT RANGE1000 LBS.
M TON
TS-S660C
OPERATING WEIGHTLBS8000
KG3630
OPERATING PRESSUREPSI4640
BAR320
OVERALL LENGTHINCHES112
MM2835
OVERALL WIDTHINCHES64
MM1618
OIL FLOWGPM66-132
LPM250-500
MAX JAW OPENINGINCHES32
MM815
MAX BLADE OPENINGINCHES25
MM630
CUTTER BLADE LENGTHINCHES26/28
MM660/720
CRUSHING FORCE AT CENTER OF JAWUS Tons259
kN2310
CARRIER WEIGHT RANGE1000 LBS.66-88
M TON30-40
TS-S430C
OPERATING WEIGHTLBS3220
KG1460
OPERATING PRESSUREPSI4060
BAR280
OVERALL LENGTHINCHES86
MM2195
OVERALL WIDTHINCHES44
MM1115
OIL FLOWGPM26-63
LPM98-238
MAX JAW OPENINGINCHES22
MM565
MAX BLADE OPENINGINCHES16
MM400
CUTTER BLADE LENGTHINCHES17/20
MM420/500
CRUSHING FORCE AT CENTER OF JAWUS Tons121
kN1080
CARRIER WEIGHT RANGE1000 LBS.26-40
M TON12-18
TS-S550C
OPERATING WEIGHTLBS5535
KG2510
OPERATING PRESSUREPSI4640
BAR320
OVERALL LENGTHINCHES100
MM2550
OVERALL WIDTHINCHES55
MM1400
OIL FLOWGPM44-116
LPM167-439
MAX JAW OPENINGINCHES27
MM690
MAX BLADE OPENINGINCHES20
MM515
CUTTER BLADE LENGTHINCHES22/24
MM550/600
CRUSHING FORCE AT CENTER OF JAWUS Tons215
kN1910
CARRIER WEIGHT RANGE1000 LBS.44-56
M TON20-25
