Available Options
- Backfill blade
- Flow control manifold
- Quick attach mounting system available for most models
- Base plate extension for narrow trenches
- Custom mounting specifications
The OAC Series line of compactors provide solutions with superior power and efficiency for all your compaction tasks, and help ensure you meet Proctor soil density requirements.

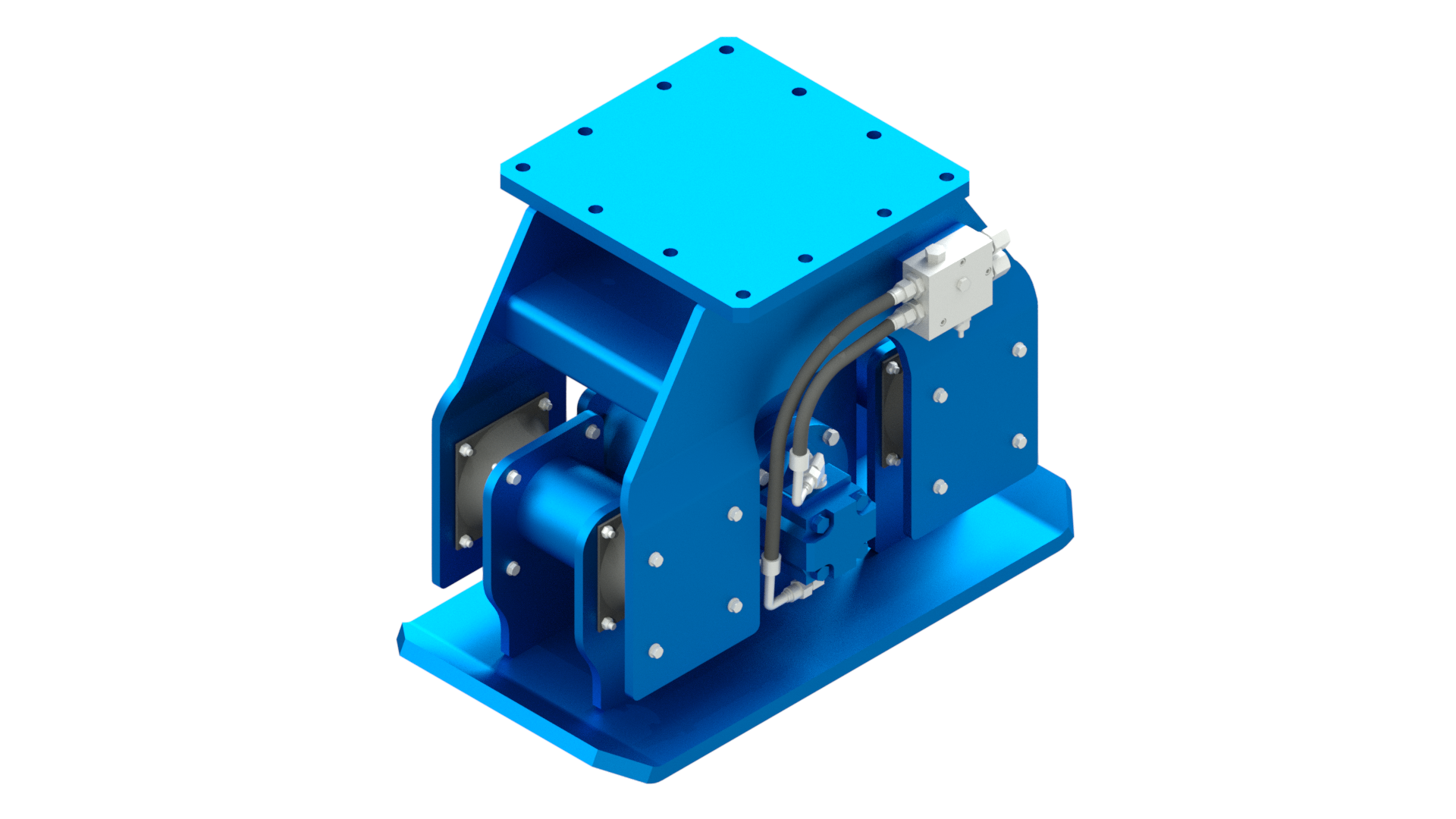

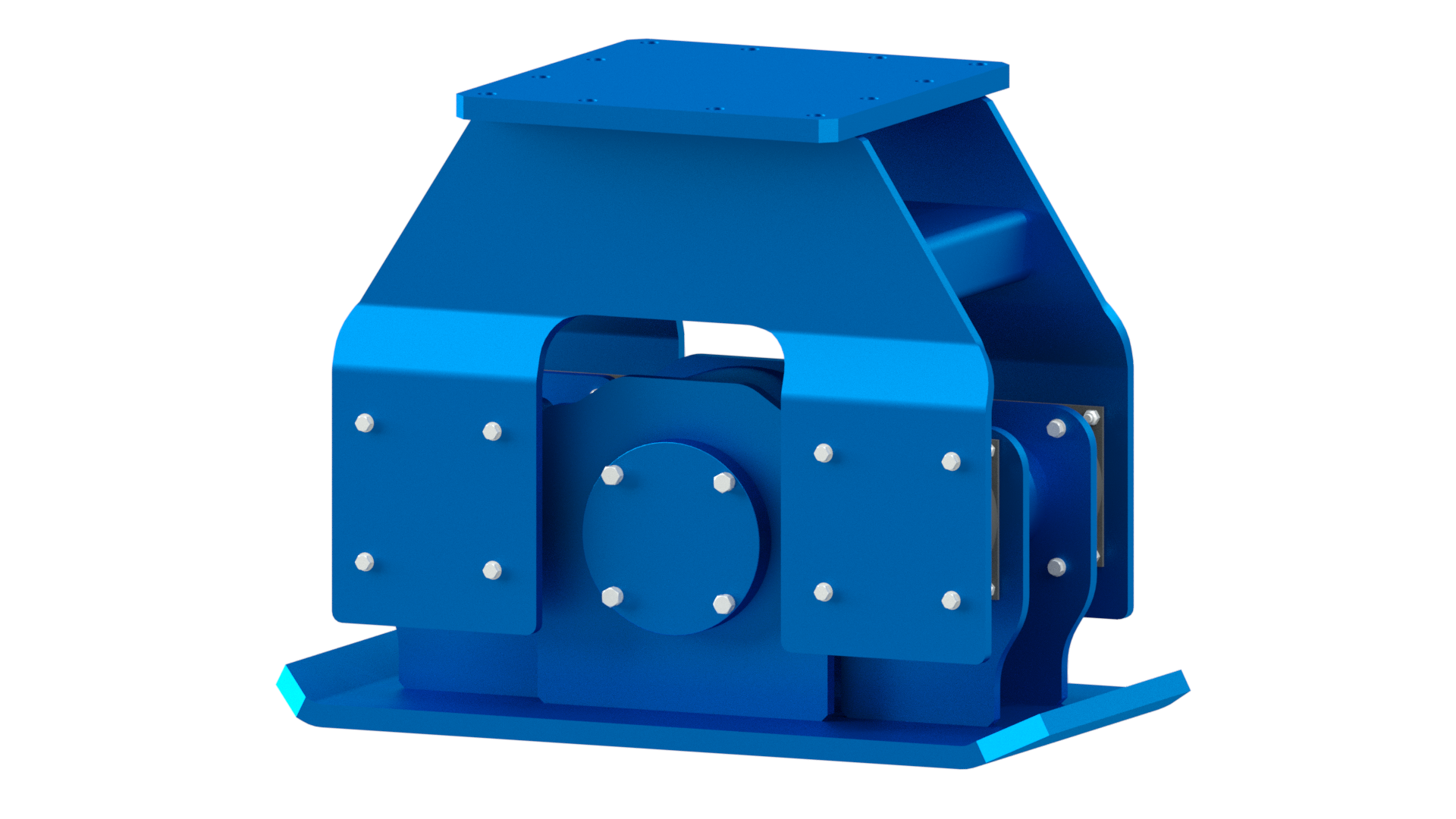

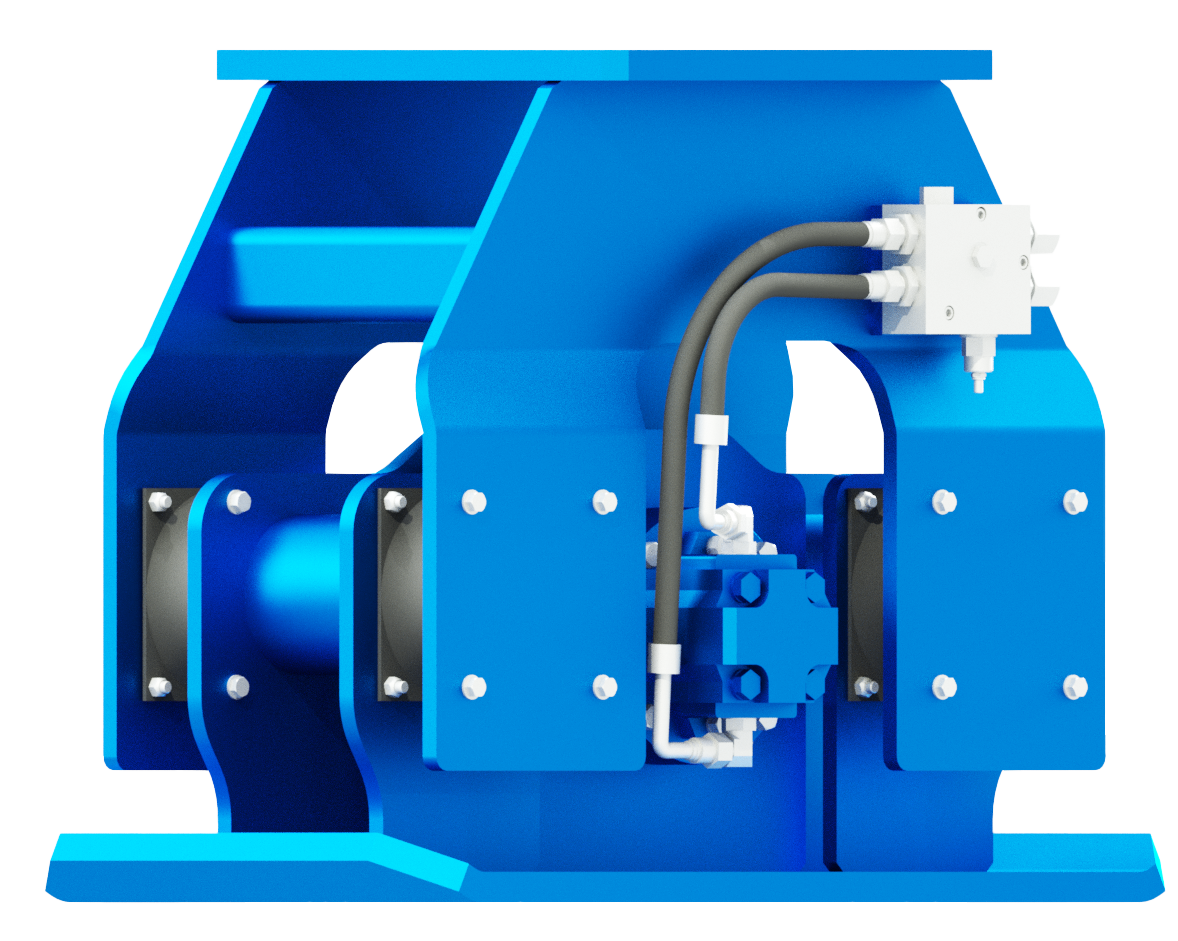

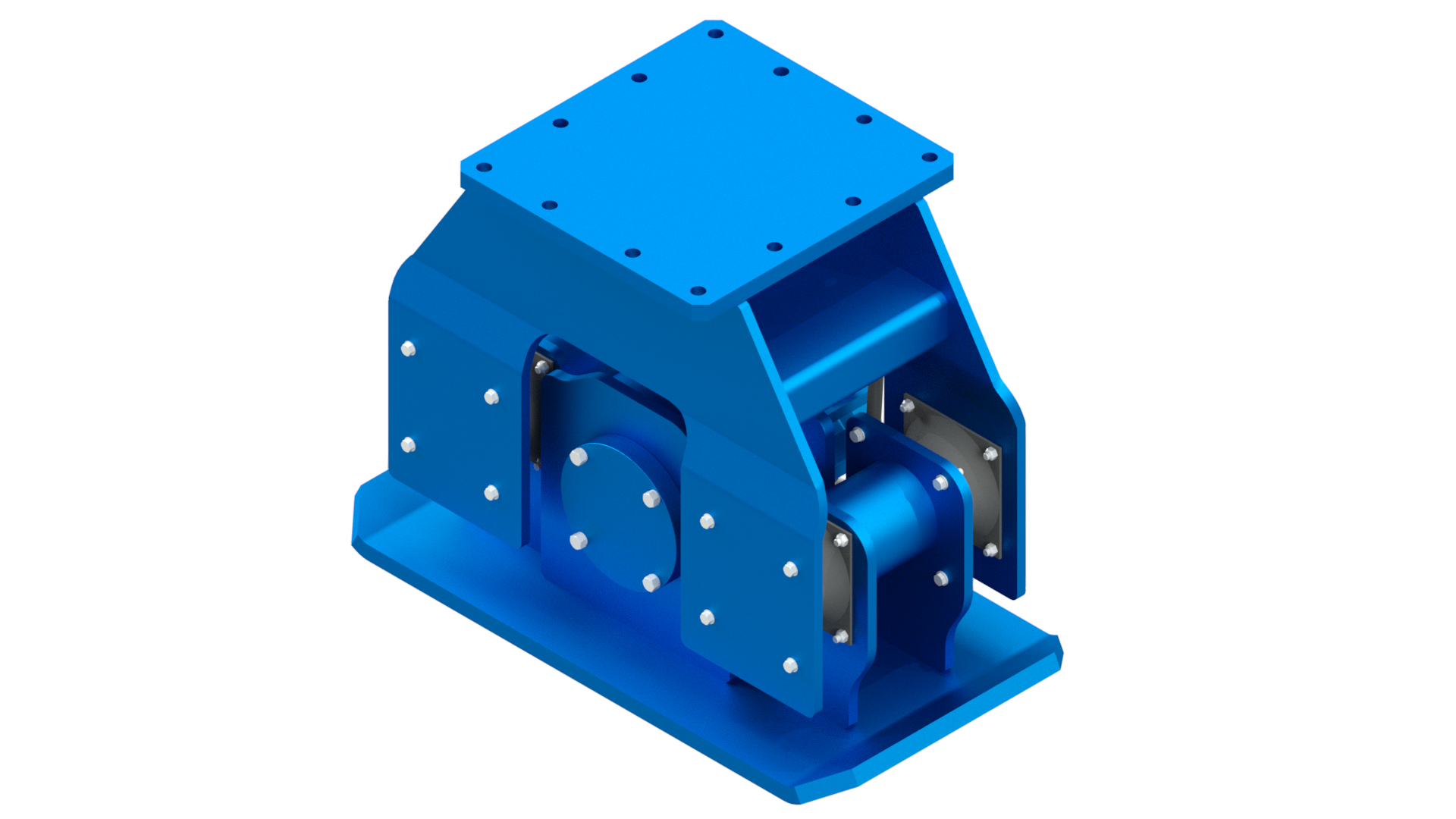

A new OAC300A-24 is equipped with 23.7" (603 mm) wide tamper plate and Oil-Filled Design (No greasing required.)
Available Options
| IMPULSE FORCE | LBS |
| - | |
| OPERATING WEIGHT | LBS |
| - | |
| OIL FLOW | GPM |
| - | |
| FREQUENCY | GPM |
| - | |
| OPERATING PRESSURE | PSI |
| - | |
| BOTTOM PLATE | INCHES |
| - | |
| HEIGHT | INCHES |
| - | |
| LIFT COMPACTION | Feet |
| - | |
| CARRIER WEIGHT RANGE | 1000 LBS. |
| - | |
| OAC300A-24 | ||
|---|---|---|
| IMPULSE FORCE | LBS | 13,500 |
| - | ||
| OPERATING WEIGHT | LBS | 1950 |
| - | ||
| OIL FLOW | GPM | 30 |
| - | ||
| FREQUENCY | GPM | 2000 |
| - | ||
| OPERATING PRESSURE | PSI | 2200 |
| - | ||
| BOTTOM PLATE | INCHES | 23.7x45.4 |
| - | ||
| HEIGHT | INCHES | 37 |
| - | ||
| LIFT COMPACTION | Feet | 3-5 |
| - | ||
| CARRIER WEIGHT RANGE | 1000 LBS. | 20-34 |
| - | ||
| OAC100 | ||
|---|---|---|
| IMPULSE FORCE | LBS | 3150 |
| - | ||
| OPERATING WEIGHT | LBS | 370 |
| - | ||
| OIL FLOW | GPM | 10 |
| - | ||
| FREQUENCY | GPM | 2100 |
| - | ||
| OPERATING PRESSURE | PSI | 2200 |
| - | ||
| BOTTOM PLATE | INCHES | 11.5x30 |
| - | ||
| HEIGHT | INCHES | 18 |
| - | ||
| LIFT COMPACTION | Feet | 1-3 |
| - | ||
| CARRIER WEIGHT RANGE | 1000 LBS. | 4-14 |
| - | ||
| OAC200 | ||
|---|---|---|
| IMPULSE FORCE | LBS | 6500 |
| - | ||
| OPERATING WEIGHT | LBS | 840 |
| - | ||
| OIL FLOW | GPM | 20 |
| - | ||
| FREQUENCY | GPM | 2000 |
| - | ||
| OPERATING PRESSURE | PSI | 2200 |
| - | ||
| BOTTOM PLATE | INCHES | 23x34 |
| - | ||
| HEIGHT | INCHES | 30 |
| - | ||
| LIFT COMPACTION | Feet | 2-4 |
| - | ||
| CARRIER WEIGHT RANGE | 1000 LBS. | 12-18 |
| - | ||
| OAC400 | ||
|---|---|---|
| IMPULSE FORCE | LBS | 20,000 |
| - | ||
| OPERATING WEIGHT | LBS | 2200 |
| - | ||
| OIL FLOW | GPM | 40 |
| - | ||
| FREQUENCY | GPM | 2000 |
| - | ||
| OPERATING PRESSURE | PSI | 2200 |
| - | ||
| BOTTOM PLATE | INCHES | 34x43 |
| - | ||
| HEIGHT | - | |
| 42 | ||
| LIFT COMPACTION | Feet | 5-7 |
| - | ||
| CARRIER WEIGHT RANGE | 1000 LBS. | 40-56 |
| - | ||
| OAC500 | ||
|---|---|---|
| IMPULSE FORCE | LBS | 22,000 |
| - | ||
| OPERATING WEIGHT | LBS | 2200 |
| - | ||
| OIL FLOW | GPM | 50 |
| - | ||
| FREQUENCY | GPM | 2100 |
| - | ||
| OPERATING PRESSURE | PSI | 2200 |
| - | ||
| BOTTOM PLATE | INCHES | 34x43 |
| - | ||
| HEIGHT | INCHES | 42 |
| - | ||
| LIFT COMPACTION | Feet | 5-7 |
| - | ||
| CARRIER WEIGHT RANGE | 1000 LBS. | 56-86 |
| - | ||
