OSC220US

PULVERIZER

The new OSC220US uses a robust, pass-through grizzly design, allowing crushed material to easiliy release from the crushing zone between jaws. Also this OSC220US has repleable tooth pad.

Secondary breaking crushers were developed as a result of a growing need to reduce disposal volume and recycle concrete waste created during concrete building demolition. The flat, wide jaw design and an internal speed valve make it possible to grab and crush large sections of concrete quickly.

DOWNLOAD BROCHUREDealer Logincontact sales
OPERATING WEIGHTLBS
KG
OIL FLOWGPM
LPM
OPERATING PRESSUREPSI
BAR
OVERALL LENGTHINCHES
MM
OVERALL HEIGHTINCHES
MM
MAX. OIL FLOWGPM
LPM
MAX JAW OPENINGINCHES
MM
CUTTER BLADE LENGTHINCHES
MM
CRUSHING FORCE AT CENTER OF JAWUS Tons
kN
CARRIER WEIGHT RANGE1000 LBS.
M TON
OSC220US
OPERATING WEIGHTLBS4823
KG2188
OIL FLOWGPM44-116
LPM167-439
OPERATING PRESSUREPSI4600
BAR320
OVERALL LENGTHINCHES75
MM1905
OVERALL HEIGHTINCHES53.7
MM1365
MAX. OIL FLOW-
-
MAX JAW OPENINGINCHES34.8
MM885
CUTTER BLADE LENGTHINCHES5.9
MM150
CRUSHING FORCE AT CENTER OF JAWUS Tons99
kN880
CARRIER WEIGHT RANGE1000 LBS.40-66
M TON18-30
OSC35A
OPERATING WEIGHTLBS700
KG318
OIL FLOWGPM7-13
LPM25-50
OPERATING PRESSUREPSI4000
BAR280
OVERALL LENGTHINCHES49
MM1245
OVERALL HEIGHTINCHES27.8
MM705
MAX. OIL FLOW-
-
MAX JAW OPENINGINCHES16.9
MM430
CUTTER BLADE LENGTHINCHES3.5
MM90
CRUSHING FORCE AT CENTER OF JAWUS Tons35
kN305
CARRIER WEIGHT RANGE1000 LBS.6.6-11
M TON3-5
OSC70A
OPERATING WEIGHTLBS1500
KG680
OIL FLOWGPM16-35
LPM61-132
OPERATING PRESSUREPSI4000
BAR280
OVERALL LENGTHINCHES62
MM1580
OVERALL HEIGHTINCHES37.8
MM960
MAX. OIL FLOW-
-
MAX JAW OPENINGINCHES23.6
MM600
CUTTER BLADE LENGTHINCHES3.9
MM100
CRUSHING FORCE AT CENTER OF JAWUS Tons51
kN450
CARRIER WEIGHT RANGE1000 LBS.13-20
M TON6-9
OSC135A
OPERATING WEIGHTLBS2400
KG1090
OIL FLOWGPM26-63
LPM98-238
OPERATING PRESSUREPSI4000
BAR280
OVERALL LENGTHINCHES76
MM1930
OVERALL HEIGHTINCHES46.3
MM1175
MAX. OIL FLOW-
-
MAX JAW OPENINGINCHES28.7
MM730
CUTTER BLADE LENGTHINCHES5.9
MM150
CRUSHING FORCE AT CENTER OF JAWUS Tons67
kN600
CARRIER WEIGHT RANGE1000 LBS.22-35
M TON10-16
OSC380A
OPERATING WEIGHTLBS8149
KG3696
OIL FLOWGPM80-116
LPM303-439
OPERATING PRESSUREPSI4600
BAR320
OVERALL LENGTHINCHES106
MM2700
OVERALL HEIGHTINCHES69.3
MM1760
MAX. OIL FLOW-
-
MAX JAW OPENINGINCHES43.5
MM1105
CUTTER BLADE LENGTHINCHES7.1
MM180
CRUSHING FORCE AT CENTER OF JAWUS Tons112
kN1000
CARRIER WEIGHT RANGE1000 LBS.66-110
M TON30-50
OSC500A
OPERATING WEIGHTLBS11280
KG5118
OIL FLOW-
-
OPERATING PRESSUREPSI4600
BAR320
OVERALL LENGTHINCHES116
MM2950
OVERALL HEIGHTINCHES84
MM2135
MAX. OIL FLOWGPM198
LPM700
MAX JAW OPENINGINCHES58
MM1465
CUTTER BLADE LENGTHINCHES9
MM215
CRUSHING FORCE AT CENTER OF JAWUS Tons125
kN1115
CARRIER WEIGHT RANGE1000 LBS.88-220
M TON40-100

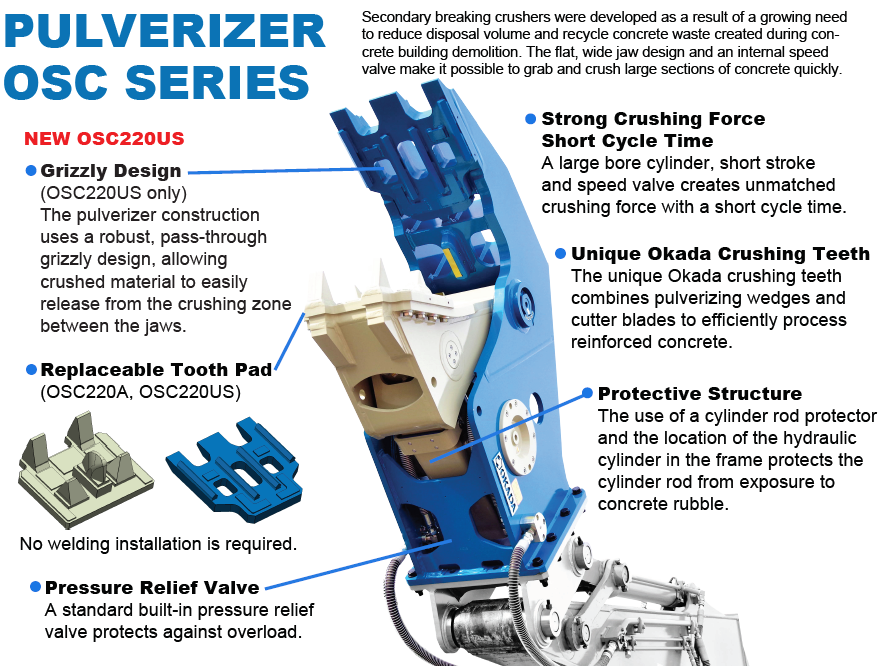

  • Replaceable Tooth pad

    Save your time and will not stop the job site. No welding is required.

  • Grizzly Design (OSC220US only)

    The pulverizer construction uses a robust, pass-through grizzly design, allowing crushed material to easily release from the crushing zone
    between the jaws.

  • Unrivaled Crushing Force, Short Cycle Time

    Okada's geometric design converts cylinder output to crushing force in constant manner and creates unmatched crushing force with a short cycle time.

  • Exceptional Productivity

    The large jaw opening and larger crushing area ensure unparalleled productivity.

  • Pressure Relief Valve

    A standard built-in pressure relief valve protects against overload.

  •

  • Protective Structure

    The use of a cylinder rod protector and the location of the hydraulic cylinder in the frame protects the cylinder rod from exposure to concrete rubble.

  • Unique Okada Crushing Teeth

    The unique Okada crushing teeth combine pulverizing wedges and cutter blades to efficiently process reinforced concrete. The crushing tooth and wedges are made of wear-resistant cast alloy, and the bolt-on cutter blade is four edge indexable.

  • Speed Valve

    Reduces the cycle time.
