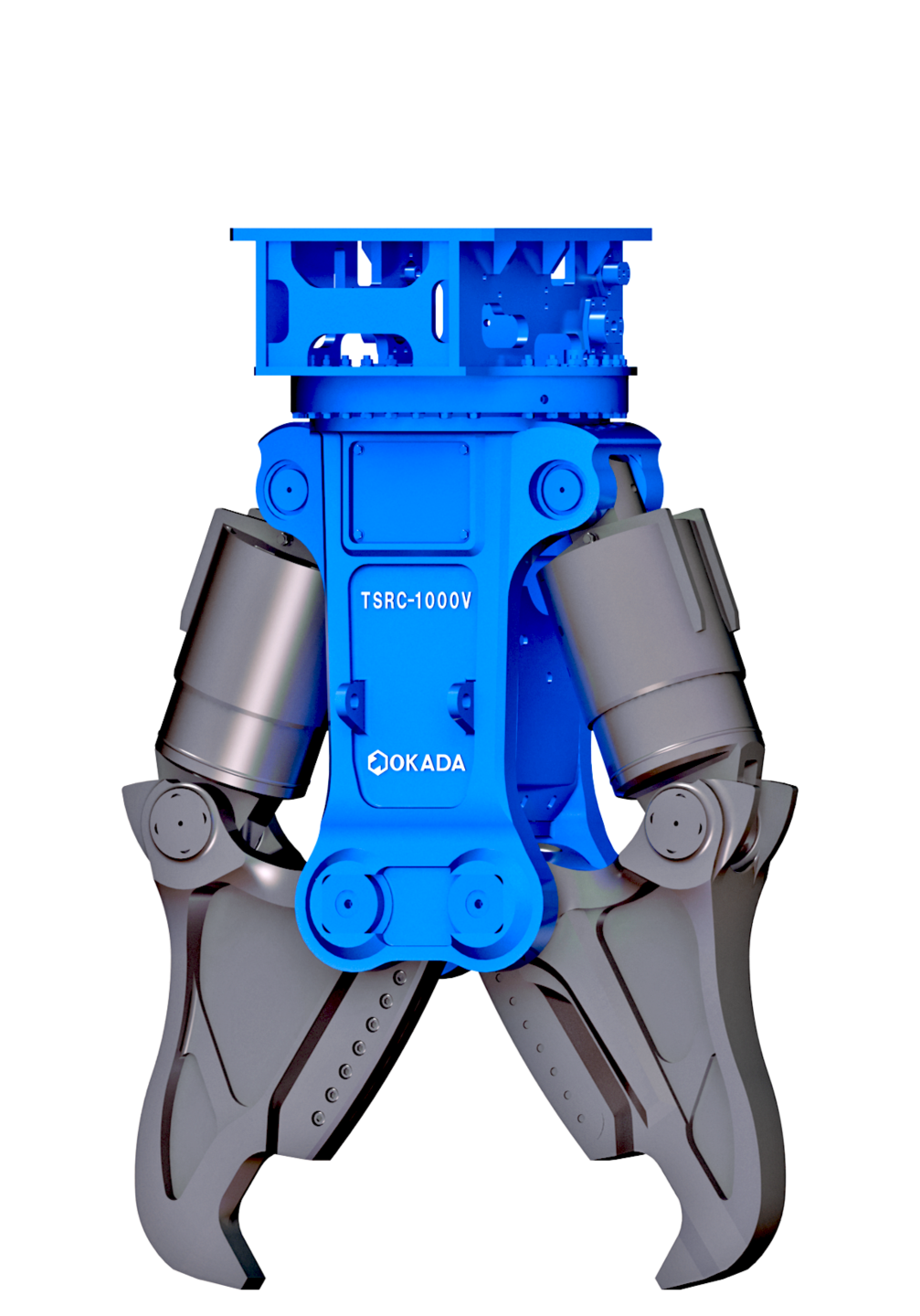

TSRC-1000V

MULTI CRUSHER/SHEAR

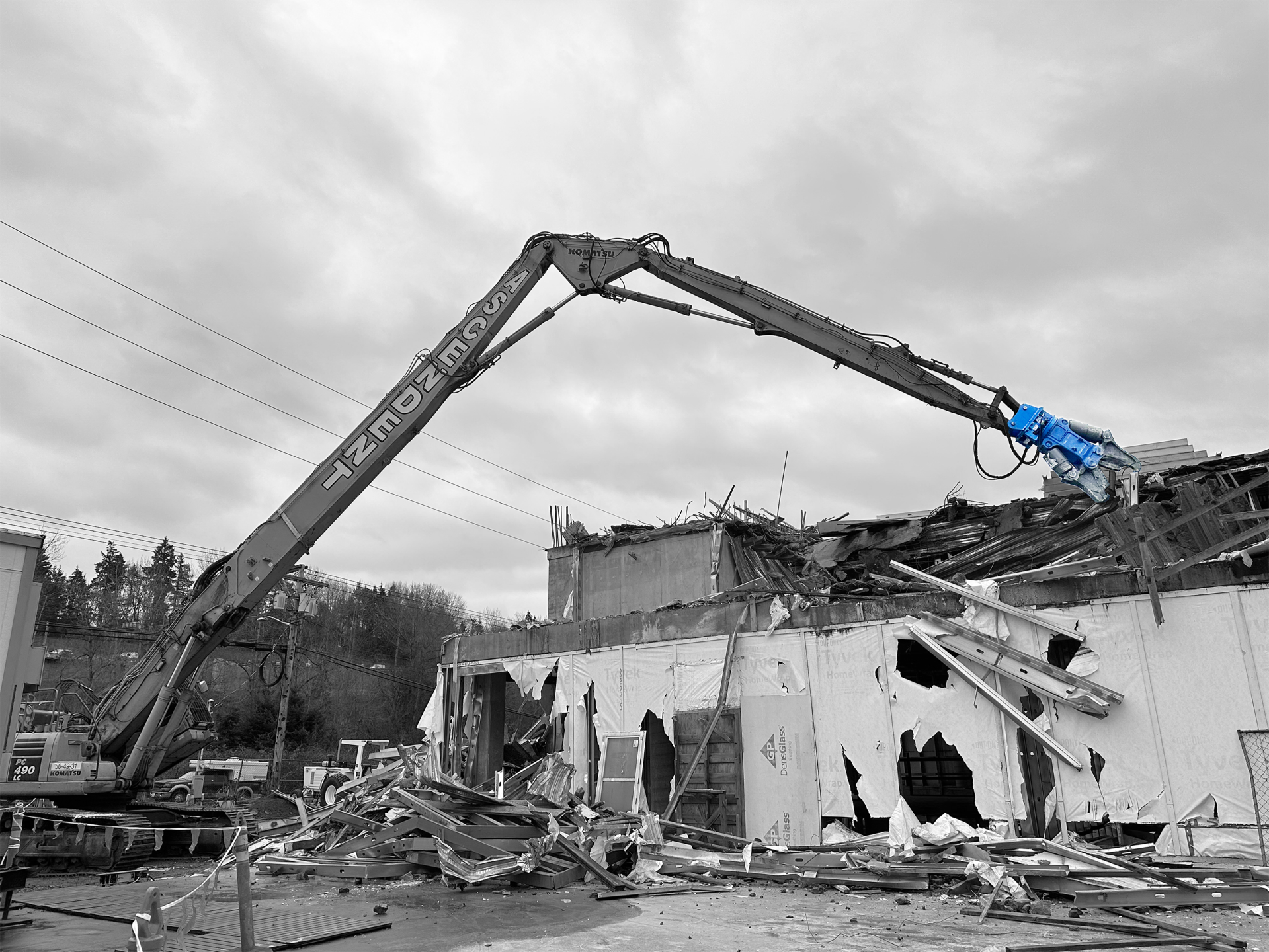

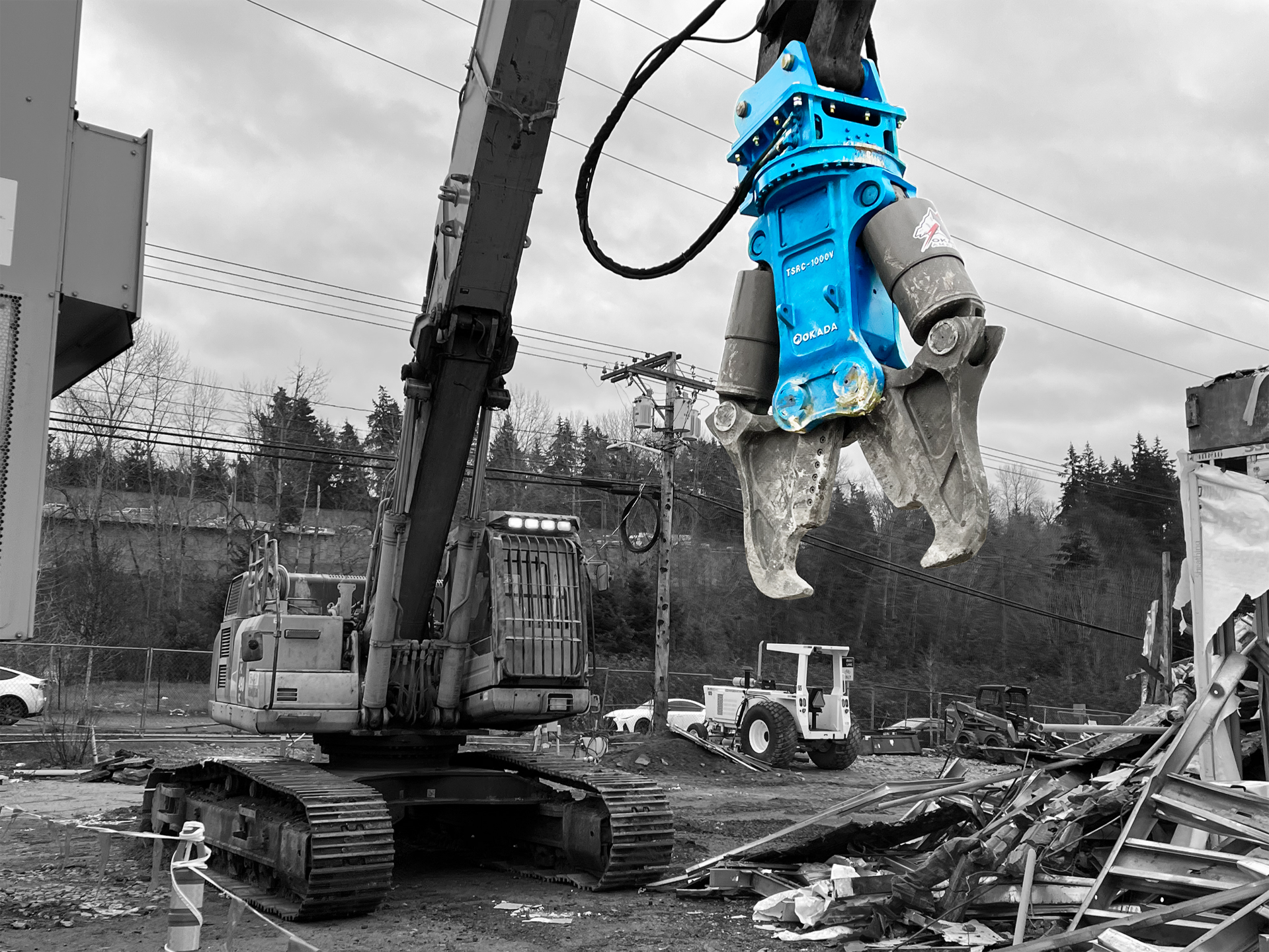

TSRC multi crusher/shear processes concrete and steel frame structure, concrete building, steel bridge, steel building and more.

All models are equipped with a speed valve for increased cycle time and a built-in pressure relief valve.

Rotation options include free rotation (FR) where no hydraulic supply is required; hydraulic rotation (HR), provided by an independent circuit from the carrier; or our Advanced Rotation Technology System (ARTS) that allows the crusher to rotate when the jaws are fully opened, using the same hydraulic circuit used to actuate the main cylinder.

DOWNLOAD BROCHUREDealer Logincontact sales
OPERATING WEIGHTLBS
KG
OIL FLOWGPM
LPM
OPERATING PRESSUREPSI
BAR
OVERALL LENGTHINCHES
MM
OVERALL WIDTHINCHES
MM
MAX JAW OPENINGINCHES
MM
CUTTER BLADE LENGTHINCHES
MM
CRUSHING FORCE AT TIPUS Tons
kN
CRUSHING FORCE AT CENTER OF JAWUS Tons
kN
CARRIER WEIGHT RANGE1000 LBS.
TON
TSRC-1000V
OPERATING WEIGHTLBS5800
KG2630
OIL FLOWGPM44-116
LPM167-439
OPERATING PRESSUREPSI4350
BAR300
OVERALL LENGTHINCHES101
MM2555
OVERALL WIDTHINCHES61
MM1540
MAX JAW OPENINGINCHES39
MM1000
CUTTER BLADE LENGTHINCHES18.9
MM480
CRUSHING FORCE AT TIPUS Tons107
kN950
CRUSHING FORCE AT CENTER OF JAWUS Tons278
kN2470
CARRIER WEIGHT RANGE1000 LBS.44-56
TON20-25
TSRC-1300V
OPERATING WEIGHTLBS9310
KG4220
OIL FLOWGPM66-132
LPM250-500
OPERATING PRESSUREPSI4350
BAR300
OVERALL LENGTHINCHES115
MM2920
OVERALL WIDTHINCHES75
MM1900
MAX JAW OPENINGINCHES51
MM1300
CUTTER BLADE LENGTHINCHES21.7
MM550
CRUSHING FORCE AT TIPUS Tons124
kN1100
CRUSHING FORCE AT CENTER OF JAWUS Tons320
kN2850
CARRIER WEIGHT RANGE1000 LBS.66-88
TON30-40

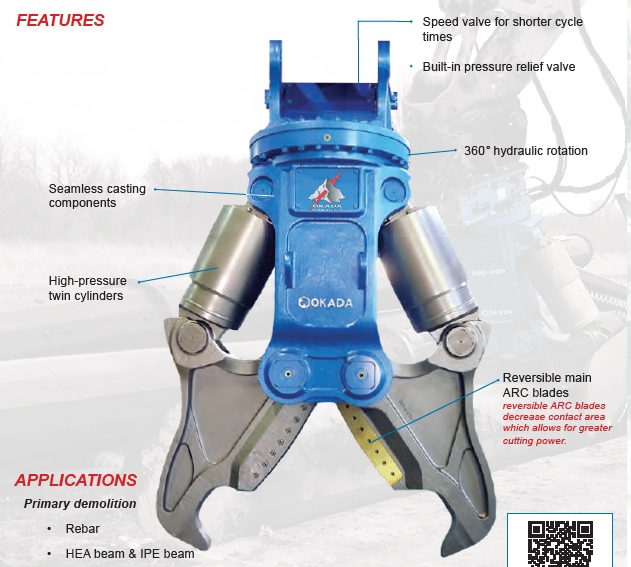

  • The arched cutter blade provides robust cutting ability.
  • The special casting alloy used delivers a lightweight crusher with superior durability.
  • A high oil flow speed valve reduces cycle time.
  • Strong rotator with a durable bearing.
